MCF51MM256CLK دیتاشیت

MCF51MM256CLK

مشخصات دیتاشیت

نام دیتاشیت MCF51MM256CLK
حجم فایل 127.559 کیلوبایت
نوع فایل pdf
تعداد صفحات 57

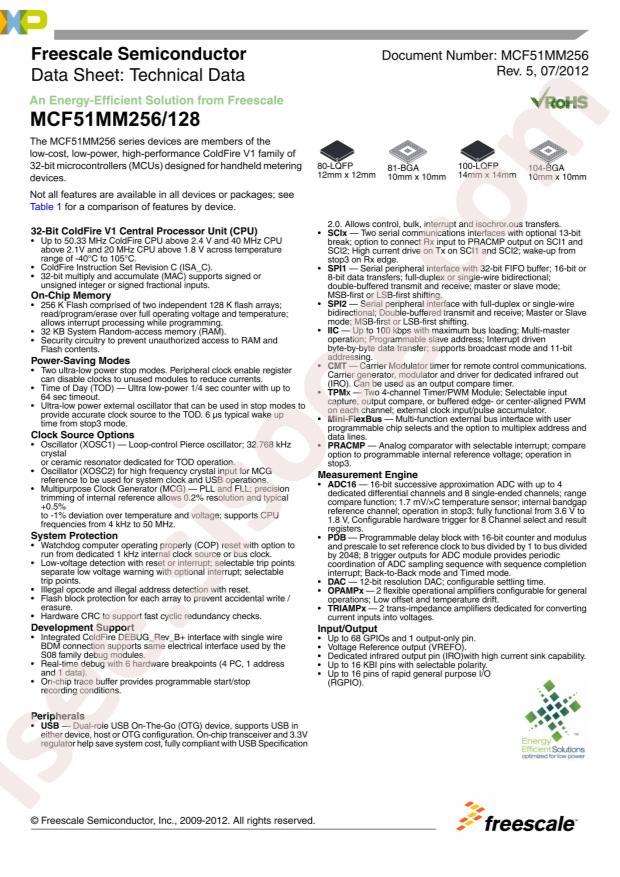

مشاهده دیتاشیت MCF51MM256CLK

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: Other series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 32KB
  • Watchdog: Yes
  • ADC (Bit): 16bit
  • DAC (Bit): 12bit
  • Datasheet: NXP Semicon MCF51MM256CLK
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 50MHz
  • GPIO Ports Number: 47
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: WDT;Low-VoltageDetect;PWM
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 256KB
  • Universal Serial Bus: Yes
  • communication protocol: -
  • Operating Voltage Range: 1.8V~3.6V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: FQFP-80(12x12)
  • Manufacturer: NXP Semicon
  • Series: MCF51MM
  • Packaging: Tray
  • Part Status: Active
  • Core Processor: Coldfire V1
  • Core Size: 32-Bit
  • Speed: 50MHz
  • Connectivity: CANbus, EBI/EMI, I²C, SCI, SPI, USB OTG
  • Peripherals: LVD, PWM, WDT
  • Number of I/O: 47
  • Program Memory Size: 256KB (256K x 8)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
  • Data Converters: A/D 8x16b; D/A 1x12b
  • Oscillator Type: External
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 80-LQFP
  • Supplier Device Package: 80-FQFP (12x12)
  • Base Part Number: MCF51
  • detail: Coldfire V1 MCF51MM Microcontroller IC 32-Bit 50MHz 256KB (256K x 8) FLASH 80-FQFP (12x12)
