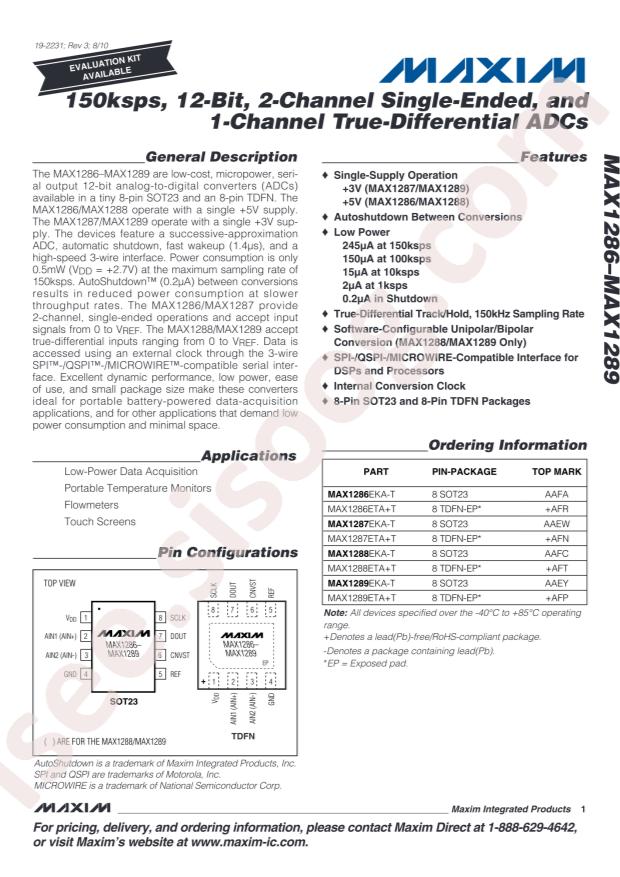

MAX1288ETA+T دیتاشیت

MAX1288ETA+T

مشخصات دیتاشیت

نام دیتاشیت MAX1288ETA+T
حجم فایل 105.211 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت MAX1288ETA+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX1286-89 15 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX1288ETA+T
  • Interface: SPI
  • resolution: 12Bit
  • Supply Voltage: 5V
  • differential input: Yes
  • number of channels: 1
  • sampling frequency: 150kHz
  • Operating Temperature: -40°C~+85°C
  • Package: DFN-8(3x3)
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Part Status: Active
  • Data Interface: SPI
  • Voltage - Supply, Digital: 5V
  • Sampling Rate (Per Second): 150k
  • Architecture: SAR
  • Supplier Device Package: 8-TDFN-EP (3x3)
  • Package / Case: 8-WDFN Exposed Pad
  • Number of A/D Converters: 1
  • Packaging: Cut Tape (CT)
  • Features: -
  • Configuration: S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Input Type: Differential
  • Reference Type: External
  • Number of Bits: 12
  • Mounting Type: Surface Mount
  • Series: -
  • Voltage - Supply, Analog: 5V
  • Number of Inputs: 1
  • Base Part Number: MAX1288
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR 8-TDFN-EP (3x3)
