- دیتاشیت TC1301B-GDDVUATR
TC1301B-GDDVUATR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | TC1301B-GDDVUATR |
|---|---|
| حجم فایل | 110.135 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 28 |
دانلود دیتاشیت TC1301B-GDDVUATR |
دانلود دیتاشیت |
|---|
سایر مستندات
Analog and Interface Product Guide 76 pages

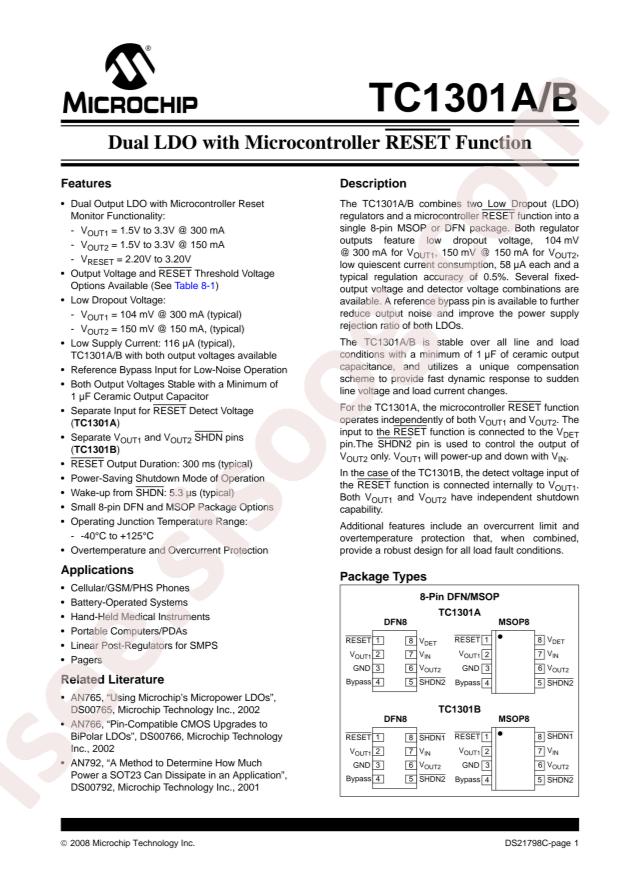

TC1301A, B Datasheet 28 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Microchip Tech TC1301B-GDDVUATR
- Output Current: 300mA;150mA
- Output Voltage: 2.7V;3V;2.5V
- Dropout Voltage: 0.18V@(300mA);0.25V@(150mA)
- Output Polarity: positive
- Number of Outputs: 2
- Maximum Input Voltage: 6V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 180uA
- Power Supply Rejection Ratio (PSRR): 58dB@(100Hz)
- Package: MSOP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 2
- Voltage - Input (Max): 6V
- Voltage - Output (Min/Fixed): 2.7V, 3V, 2.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.18V @ 300mA, 0.25V @ 150mA
- Current - Output: 300mA, 150mA
- Current - Quiescent (Iq): 180µA
- PSRR: 58dB (100Hz)
- Control Features: Enable, Reset
- Protection Features: Over Current, Over Temperature
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: TC1301B
- detail: Linear Voltage Regulator IC 2 Output 300mA, 150mA 8-MSOP
