LX7309ILQ-TR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت LX7309ILQ-TR	دانلود دیتاشیت

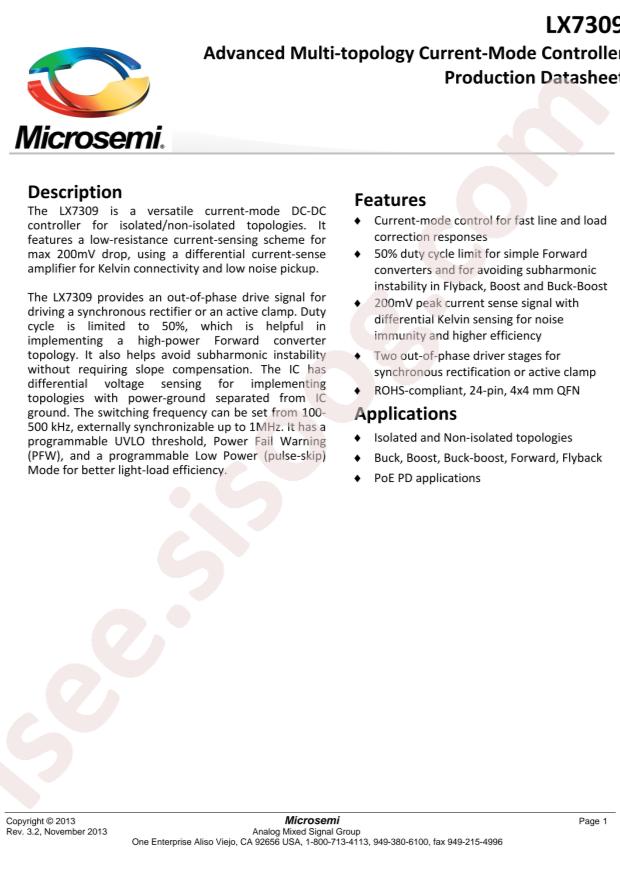

LX7309 28 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Step-down type;Buck-boost type
Topology: Step-down;Boost;Step-down-Boost;Flyback
Datasheet: Microchip Tech LX7309ILQ-TR
Output Type: -
Number of Outputs: 1
Switching Frequency: 500kHz
Operating Temperature: -40°C~+85°C@(TA)
Synchronous Rectification: Yes
Package: QFN-24-EP(4x4)
Manufacturer: Microchip Tech
Series: -
Packaging: Tape & Reel (TR)
Part Status: Active
Output Configuration: Positive, Isolation Capable
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 9.6V ~ 20V
Frequency - Switching: 100kHz ~ 500kHz
Duty Cycle (Max): 50%
Synchronous Rectifier: Yes
Clock Sync: Yes
Serial Interfaces: -
Control Features: Enable, Frequency Control, Soft Start
Mounting Type: Surface Mount
Package / Case: 24-TFQFN Exposed Pad
Supplier Device Package: 24-QFN (4x4)
detail: Buck, Boost, Buck-Boost, Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up, Step-Down, Step-Up/Step-Down DC-DC Controller IC 24-QFN (4x4)
