MIC5373-SJGYMT-TR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت MIC5373-SJGYMT-TR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

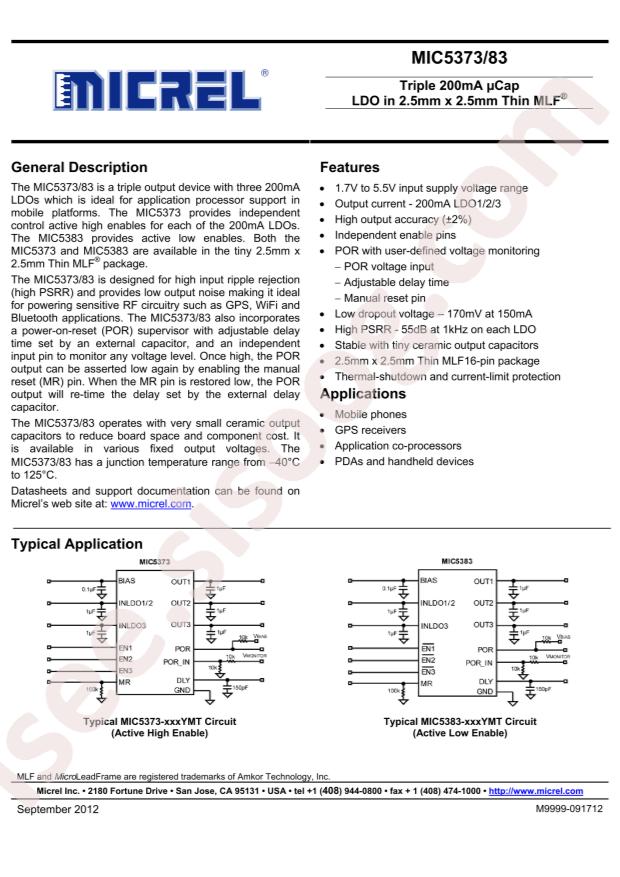

Datasheet: Microchip Tech MIC5373-SJGYMT-TR
Output Current: 200mA
Output Voltage: 1.8V;2.5V~2.5V;12V~12V
Dropout Voltage: 0.45V@(150mA);0.33V@(150mA)
Output Polarity: positive
Number of Outputs: 3
Maximum Input Voltage: 5.5V
Operating Temperature: -40°C~+125°C
Quiescent Current (Ground Current): 20uA
Power Supply Rejection Ratio (PSRR): 55dB@(1kHz)
Package: MLF-16
Manufacturer: Microchip Tech
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 3
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 1.8V, 2.5V, 3.3V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.45V @ 150mA, 0.45V @ 150mA, 0.33V @ 150mA
Current - Output: 200mA, 200mA, 200mA
Current - Quiescent (Iq): 20µA
PSRR: 55dB (1kHz)
Control Features: Enable, Power On Reset
Protection Features: Over Current, Over Temperature
Mounting Type: Surface Mount
Package / Case: 16-UFQFN Exposed Pad, 16-MLF®
Supplier Device Package: 16-MLF® (3x3)
Base Part Number: MIC5373
detail: Linear Voltage Regulator IC 3 Output 200mA, 200mA, 200mA 16-MLF® (3x3)
