MPC5553MVR132 دیتاشیت

MPC5553MVR132

مشخصات دیتاشیت

نام دیتاشیت MPC5553MVR132
حجم فایل 94.286 کیلوبایت
نوع فایل pdf
تعداد صفحات 68

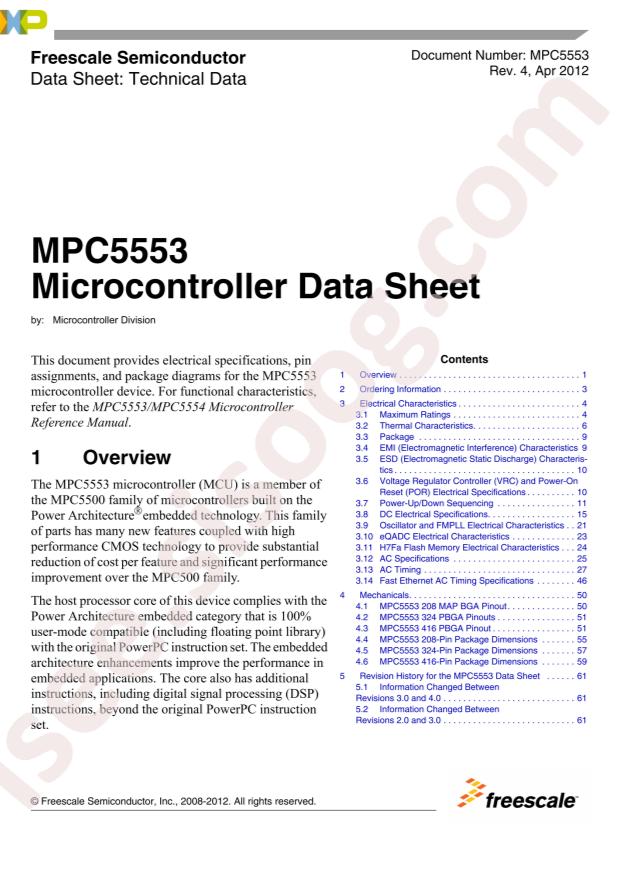

مشاهده دیتاشیت MPC5553MVR132

دانلود دیتاشیت

سایر مستندات

MPC5553 Datasheet 68 pages

مشخصات فنی

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: 飞思卡尔系列
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 64KB
  • Watchdog: Yes
  • ADC (Bit): 12bit
  • DAC (Bit): -
  • Datasheet: NXP Semicon MPC5553MVR132
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 132MHz
  • GPIO Ports Number: 220
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: WDT;DMA;PWM
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 1.5MB
  • Universal Serial Bus: -
  • communication protocol: -
  • Operating Voltage Range: 1.35V~1.65V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+125°C
  • Secure Digital Input and Output: -
  • Package: BGA-416
  • Manufacturer: NXP Semicon
  • Series: MPC55xx Qorivva
  • Packaging: Tray
  • Part Status: Active
  • Core Processor: e200z6
  • Core Size: 32-Bit
  • Speed: 132MHz
  • Connectivity: CANbus, EBI/EMI, Ethernet, SCI, SPI
  • Peripherals: DMA, POR, PWM, WDT
  • Number of I/O: 220
  • Program Memory Size: 1.5MB (1.5M x 8)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 1.35V ~ 1.65V
  • Data Converters: A/D 40x12b
  • Oscillator Type: External
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 416-BBGA
  • Supplier Device Package: 416-PBGA (27x27)
  • Base Part Number: MPC55
  • detail: e200z6 MPC55xx Qorivva Microcontroller IC 32-Bit 132MHz 1.5MB (1.5M x 8) FLASH 416-PBGA (27x27)
