MIC5374-SJG1YMT-TR دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت MIC5374-SJG1YMT-TR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Linear Voltage Regulators (LDO)

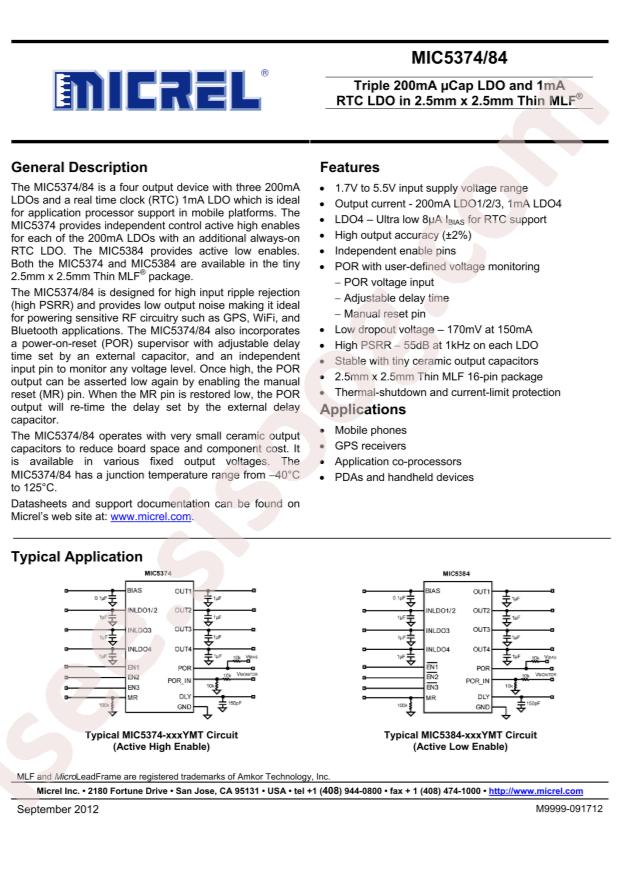

Datasheet: Microchip Tech MIC5374-SJG1YMT-TR
Output Current: 200mA;1mA
Output Voltage: 3.3V;2.5V;1.8V;1V
Dropout Voltage: 0.33V@(150mA);0.45V@(150mA)
Output Polarity: positive
Number of Outputs: 4
Maximum Input Voltage: 5.5V
Operating Temperature: -40°C~+125°C
Quiescent Current (Ground Current): 20uA
Power Supply Rejection Ratio (PSRR): 55dB@(1kHz)
Package: MLF-4
Manufacturer: Microchip Tech
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
Output Configuration: Positive
Output Type: Fixed
Number of Regulators: 4
Voltage - Input (Max): 5.5V
Voltage - Output (Min/Fixed): 3.3V, 2.5V, 1.8V, 1V
Voltage - Output (Max): -
Voltage Dropout (Max): 0.33V @ 150mA, 0.45V @ 150mA, 0.45V @ 150mA, 0.45V @ 150mA
Current - Output: 200mA, 200mA, 200mA, 1mA
Current - Quiescent (Iq): 20µA
PSRR: 55dB (1kHz)
Control Features: Enable, Power On Reset
Protection Features: Over Current, Over Temperature
Mounting Type: Surface Mount
Package / Case: 16-UFQFN Exposed Pad, 16-MLF®
Supplier Device Package: 16-MLF® (3x3)
Base Part Number: MIC5374
detail: Linear Voltage Regulator IC 4 Output 200mA, 200mA, 200mA, 1mA 16-MLF® (3x3)
