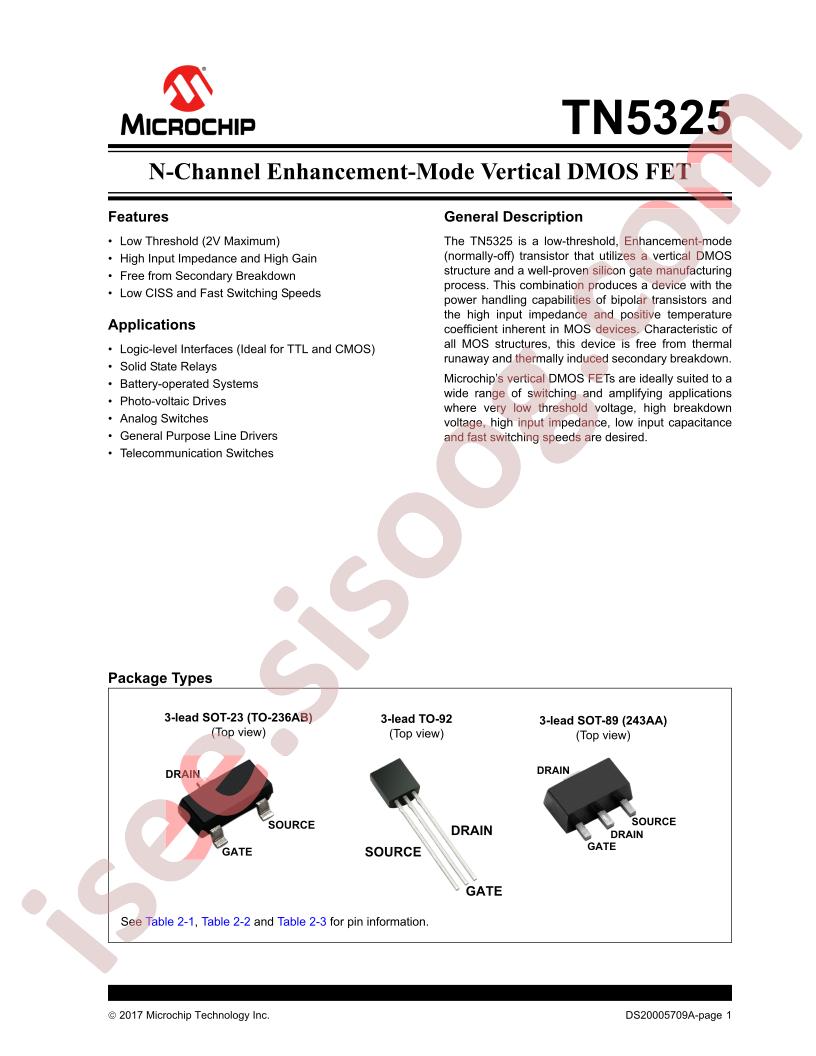

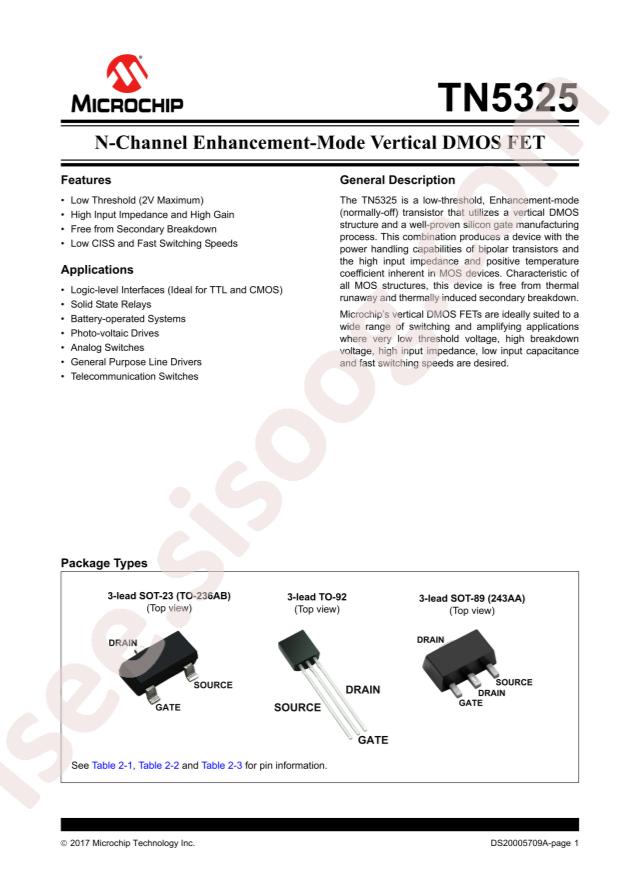

دیتاشیت TN5325N3-G-P002

TN5325 Datasheet

مشخصات دیتاشیت

نام دیتاشیت TN5325 Datasheet
حجم فایل 865.458 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت TN5325 Datasheet

TN5325 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Microchip Tech TN5325N3-G-P002
  • Power Dissipation (Pd): 740mW
  • Drain Source Voltage (Vdss): 250V
  • Input Capacitance (Ciss@Vds): 110pF@25V
  • Continuous Drain Current (Id): 215mA
  • Gate Threshold Voltage (Vgs(th)@Id): 2V@1mA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 7Ω@1A,10V
  • Package: TO-92
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 250V
  • Current - Continuous Drain (Id) @ 25°C: 215mA (Ta)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 7Ohm @ 1A, 10V
  • Vgs(th) (Max) @ Id: 2V @ 1mA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 110pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 740mW (Ta)
  • Operating Temperature: -
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • detail: N-Channel 250V 215mA (Ta) 740mW (Ta) Through Hole TO-92-3
