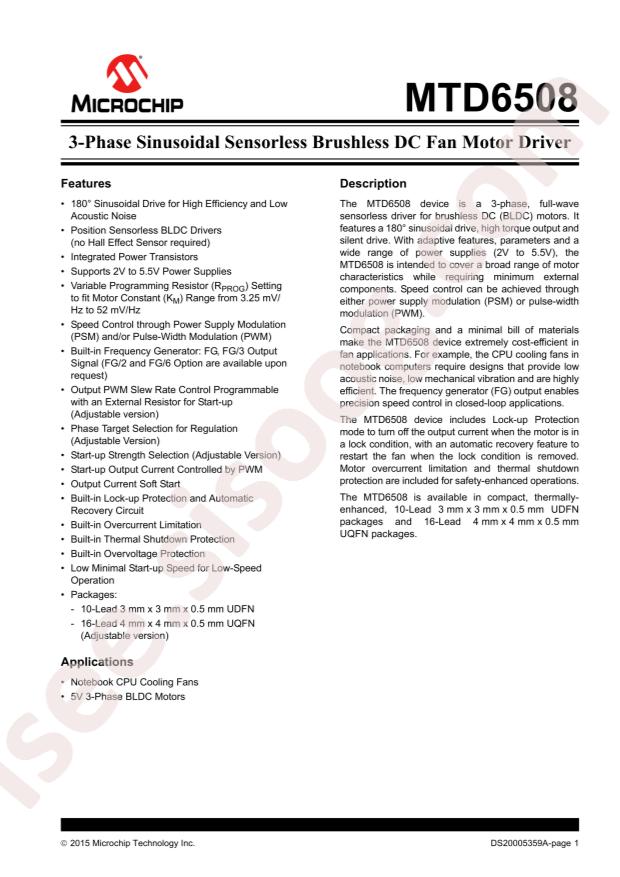

دیتاشیت MTD6508-E/NA
مشخصات دیتاشیت
| نام دیتاشیت | MTD6508 Datasheet |
|---|---|
| حجم فایل | 1659.009 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 26 |
دانلود دیتاشیت MTD6508 Datasheet |
MTD6508 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Type: 无刷直流BLDC
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Microchip Tech MTD6508-E/NA
- Interface: PWM
- Output Current: 1A
- Supply Voltage: 2V~5.5V
- Operating Temperature: -40°C~+125°C@(Ta)
- Package: UDFN-10
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tube
- Part Status: Active
- Motor Type - Stepper: -
- Motor Type - AC, DC: Brushless DC (BLDC)
- Function: Driver - Fully Integrated, Control and Power Stage
- Output Configuration: Half Bridge (3)
- Technology: Power MOSFET
- Step Resolution: -
- Applications: General Purpose
- Current - Output: 1A
- Voltage - Supply: 2V ~ 5.5V
- Voltage - Load: 2V ~ 5.5V
- Mounting Type: Surface Mount
- Package / Case: 10-UFDFN Exposed Pad
- Supplier Device Package: 10-UDFN (3x3)
- Base Part Number: MTD6508
- detail: Motor Driver Power MOSFET PWM 10-UDFN (3x3)
