دیتاشیت MAX20079AATP/VY+
مشخصات دیتاشیت
| نام دیتاشیت | MAX20079 Datasheet~ |
|---|---|
| حجم فایل | 1319.251 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |

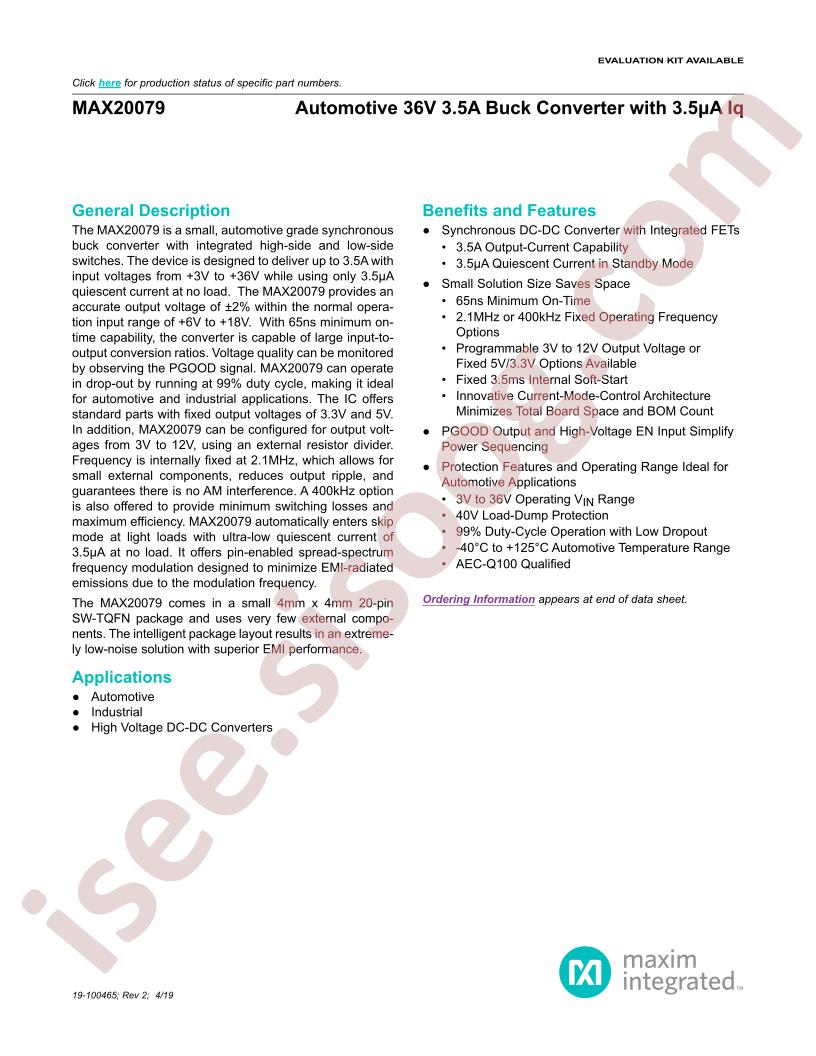

دانلود دیتاشیت MAX20079 Datasheet~ |
MAX20079 Datasheet~ Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Output Type: Adjustable
- Input Voltage: 3V~36V
- Output Voltage: 3V;5V~12V
- Number of Outputs: 1
- Switching Frequency: 2.1MHz
- Output Current (Max): 3.5A
- Operating Temperature: -40°C~+125°C@(TA)
- Synchronous Rectification: Yes
- Package: SWTQFN-20(4x4)
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Voltage - Input (Max): 36V
- Voltage - Input (Min): 3V
- Output Configuration: Positive
- Supplier Device Package: 20-SWTQFN (4x4)
- Package / Case: 20-WFQFN Exposed Pad
- Frequency - Switching: 2.1MHz
- Current - Output: 3.5A
- Part Status: Active
- Series: -
- Voltage - Output (Max): 12V
- Base Part Number: MAX200
- Mounting Type: Surface Mount, Wettable Flank
- Synchronous Rectifier: Yes
- Voltage - Output (Min/Fixed): 3V, 5V
- detail: Buck Switching Regulator IC Positive Programmable (Fixed) 3V, 5V 1 Output 3.5A 20-WFQFN Exposed Pad
