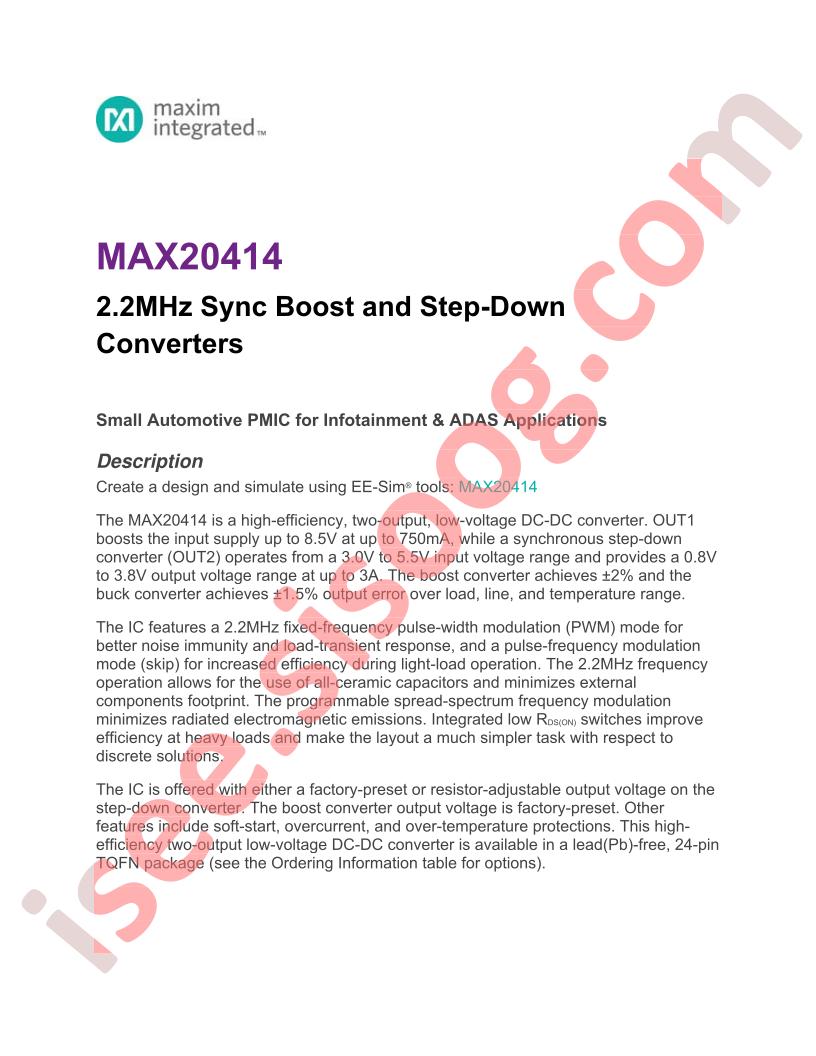

دیتاشیت MAX20414ATGA/V+
مشخصات دیتاشیت
| نام دیتاشیت |
MAX20414
|
| حجم فایل |
116.588
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
2
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Step-down type
-
Topology:
Step-down-Boost
-
Datasheet:
Analog Devices Inc./Maxim Integrated MAX20414ATGA/V+
-
Output Type:
Adjustable
-
Input Voltage:
3V~5.5V
-
Output Voltage:
0.8V~8.5V
-
Number of Outputs:
1
-
Switching Frequency:
2.2MHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+125°C
-
Synchronous Rectification:
Yes
-
Package:
QFN-24-EP(4x4)
-
Manufacturer:
Analog Devices Inc./Maxim Integrated
-
Voltage - Input (Max):
5.5V
-
Voltage - Input (Min):
3V
-
Output Configuration:
Positive
-
Supplier Device Package:
24-TQFN (4x4)
-
Package / Case:
24-WFQFN Exposed Pad
-
Frequency - Switching:
2.2MHz
-
Current - Output:
3A
-
Part Status:
Active
-
Series:
Automotive, AEC-Q100
-
Voltage - Output (Max):
8.5V
-
Base Part Number:
MAX204
-
Mounting Type:
Surface Mount
-
Synchronous Rectifier:
Yes
-
Voltage - Output (Min/Fixed):
0.8V
-
detail:
Buck-Boost Switching Regulator IC Positive Adjustable 0.8V 1 Output 3A 24-WFQFN Exposed Pad
