MAX20014ATGF/V+ دیتاشیت

مشخصات دیتاشیت

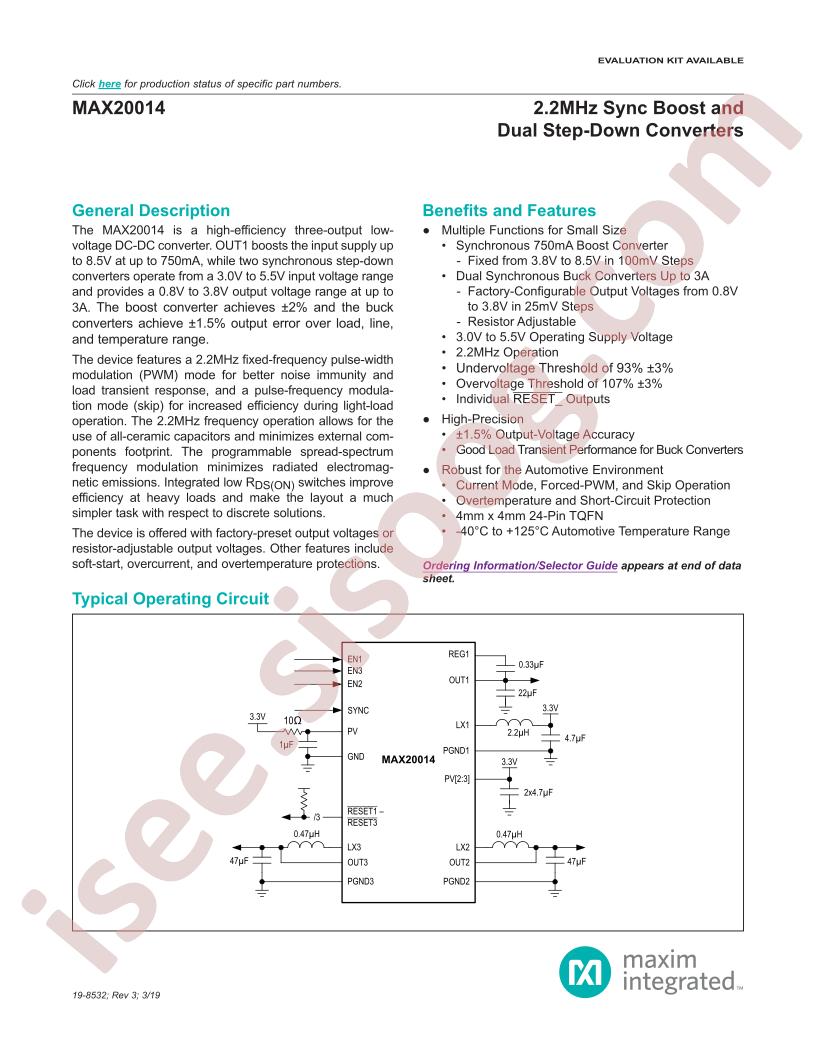

مشاهده دیتاشیت MAX20014 Abridged Datasheet	دانلود دیتاشیت

مستندات دیگری یافت نشد!

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: boost converterType;Step-down type
Topology: Step-down;Boost
Output Type: 可调和固定
Input Voltage: 3V~5.5V
Output Voltage: 0.8V~3.8V
Number of Outputs: 2
Switching Frequency: 2.2MHz
Output Current (Max): 3A
Operating Temperature: -40°C~+125°C@(TA)
Synchronous Rectification: Yes
Package: QFN-24-EP(4x4)
Manufacturer: Analog Devices Inc./Maxim Integrated
Voltage - Input (Max): 5.5V
Voltage - Input (Min): 3V
Output Configuration: Positive
Supplier Device Package: 24-TQFN-EP (4x4)
Package / Case: 24-WFQFN Exposed Pad
Frequency - Switching: 2.2MHz
Current - Output: 3A, 3A
Part Status: Active
Series: Automotive, AEC-Q100
Voltage - Output (Max): 3.8V
Base Part Number: MAX200
Mounting Type: Surface Mount
Synchronous Rectifier: Yes
Voltage - Output (Min/Fixed): 0.8V (5V)
Packaging: Tube
detail: Buck, Boost Switching Regulator IC Positive Adjustable (Fixed) 0.8V (5V) 2 Output 3A, 3A 24-WFQFN Exposed Pad
