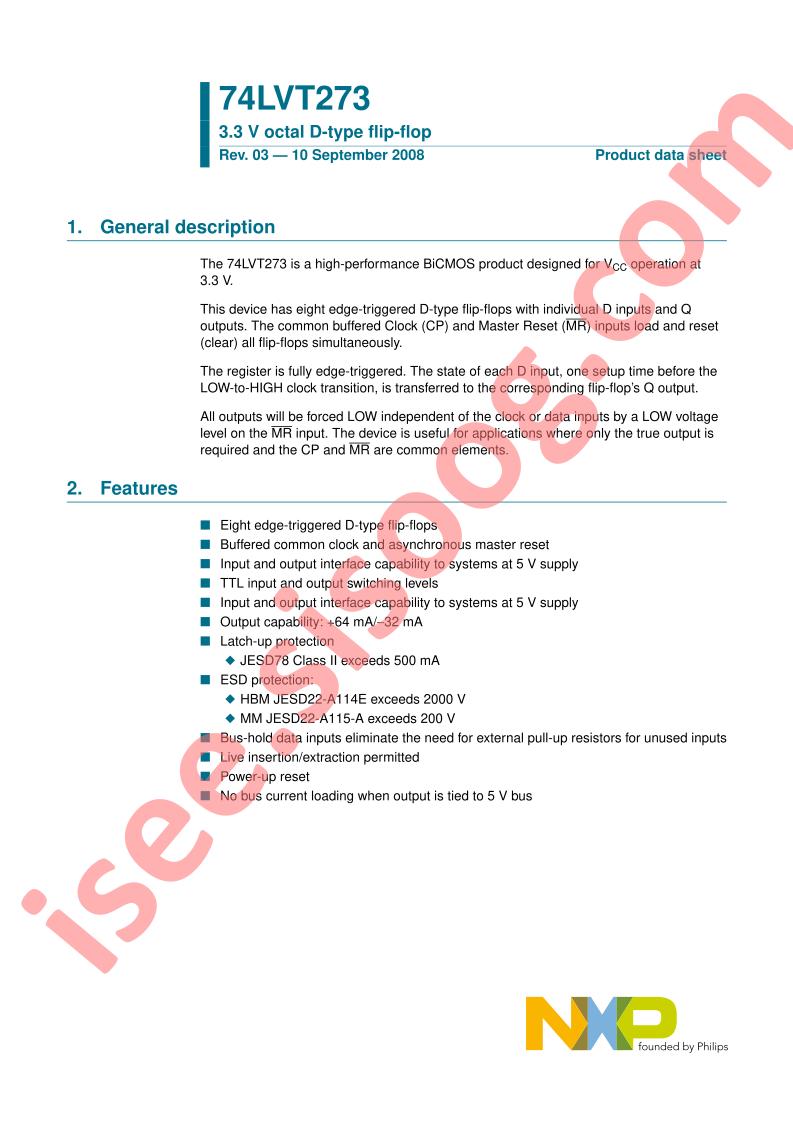

دیتاشیت 74LVT273PW,118
مشخصات دیتاشیت
| نام دیتاشیت |
74LVT273
|
| حجم فایل |
110.258
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
Manufacturer:
NXP USA Inc.
-
Series:
74LVT
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Function:
Master Reset
-
Type:
D-Type
-
Output Type:
Non-Inverted
-
Number of Elements:
1
-
Number of Bits per Element:
8
-
Clock Frequency:
150MHz
-
Max Propagation Delay @ V, Max CL:
5.5ns @ 3.3V, 50pF
-
Trigger Type:
Positive Edge
-
Current - Output High, Low:
32mA, 64mA
-
Voltage - Supply:
2.7V ~ 3.6V
-
Current - Quiescent (Iq):
190µA
-
Input Capacitance:
4pF
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
20-TSSOP
-
Package / Case:
20-TSSOP (0.173", 4.40mm Width)
-
Base Part Number:
74LVT2
-
detail:
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-TSSOP (0.173", 4.40mm Width)
