دیتاشیت IP4254CZ8-4,118

مشخصات دیتاشیت

دانلود دیتاشیت IP4251,52,53,54-TTL	IP4251,52,53,54-TTL Datasheet

Manufacturer: NXP USA Inc.
Series: -
Packaging: Cut Tape (CT)
Part Status: Obsolete
Type: Low Pass
Filter Order: 2nd
Technology: RC (Pi)
Number of Channels: 4
Center / Cutoff Frequency: -
Attenuation Value: 28dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms): 100
Values: R = 100Ohms, C = 30pF (Total)
ESD Protection: Yes
Operating Temperature: -40°C ~ 85°C
Applications: LAN, WAN
Voltage - Rated: -
Mounting Type: Surface Mount

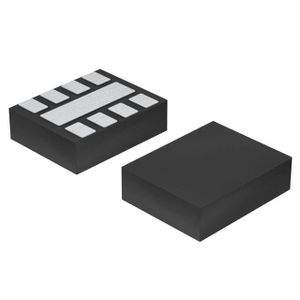

Package / Case: 8-XFDFN Exposed Pad
Size / Dimension: 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height: 0.020" (0.50mm)
Base Part Number: IP425
detail: RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100Ohms, C = 30pF (Total) 8-XFDFN Exposed Pad
