MAX20459ATJA/V+ دیتاشیت

مشخصات دیتاشیت

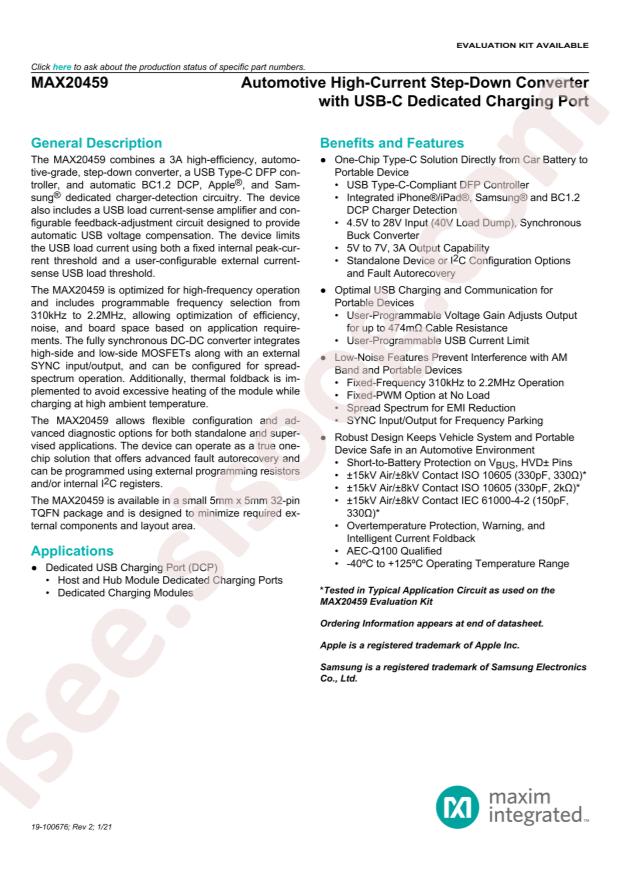

مشاهده دیتاشیت MAX20459ATJA/V+	دانلود دیتاشیت

MAX20459 57 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices Inc./Maxim Integrated MAX20459ATJA/V+
Output Type: Adjustable
Input Voltage: 3V~3.6V
Output Voltage: 5V~7V
Number of Outputs: 1
Switching Frequency: 410kHz;2.2MHz
Output Current (Max): 3A
Operating Temperature: -40°C~+125°C
Synchronous Rectification: Yes
Package: TQFN-32-EP(5x5)
Manufacturer: Analog Devices Inc./Maxim Integrated
Voltage - Input (Max): 3.6V
Voltage - Input (Min): 3V
Output Configuration: Positive
Supplier Device Package: 32-TQFN-EP (5x5)
Package / Case: 32-WFQFN Exposed Pad
Frequency - Switching: 410kHz, 2.2MHz
Current - Output: 3A
Part Status: Active
Series: Automotive, AEC-Q100
Voltage - Output (Max): 7V
Mounting Type: Surface Mount Horizontal
Synchronous Rectifier: Yes
Voltage - Output (Min/Fixed): 5V
detail: Buck Switching Regulator IC Positive Adjustable 5V 1 Output 3A 32-WFQFN Exposed Pad
