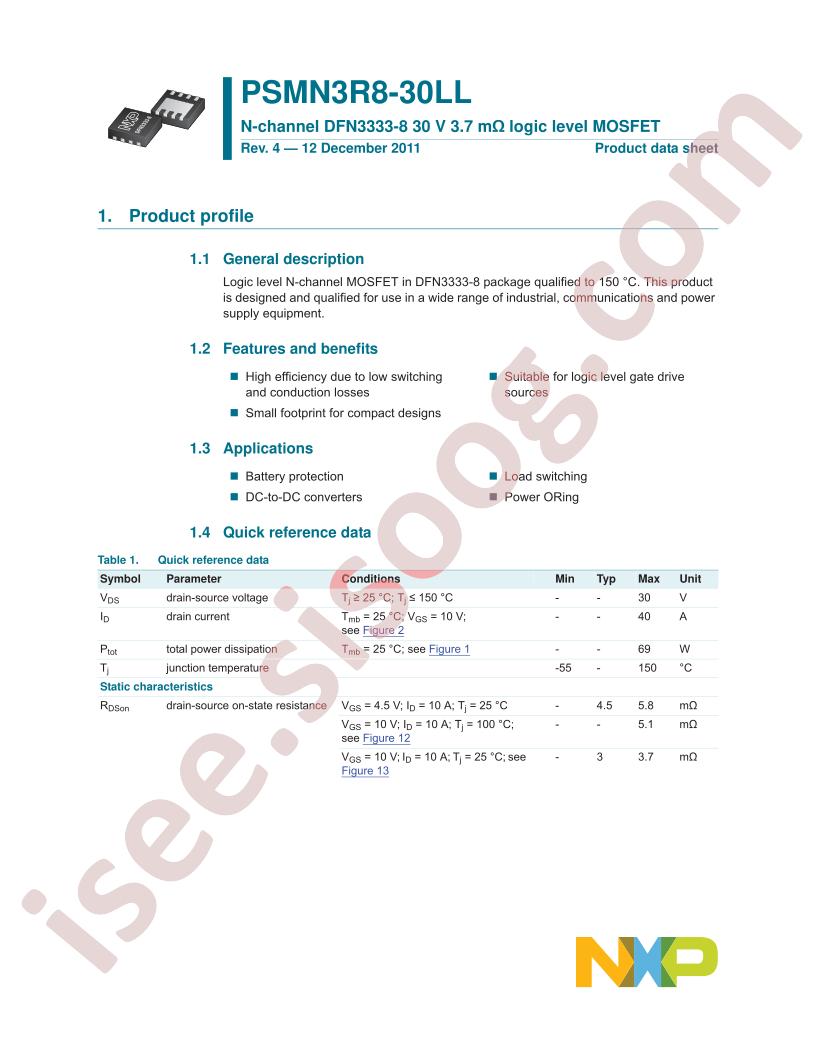

PSMN3R8-30LL,115 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: NXP USA Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30V
- Current - Continuous Drain (Id) @ 25°C: 40A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 3.7mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 2.15V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 38nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2085pF @ 15V
- FET Feature: -
- Power Dissipation (Max): 69W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DFN3333 (3.3x3.3)
- Package / Case: 8-VDFN Exposed Pad
- Base Part Number: PSMN3
- detail: N-Channel 30V 40A (Tc) 69W (Tc) Surface Mount 8-DFN3333 (3.3x3.3)
