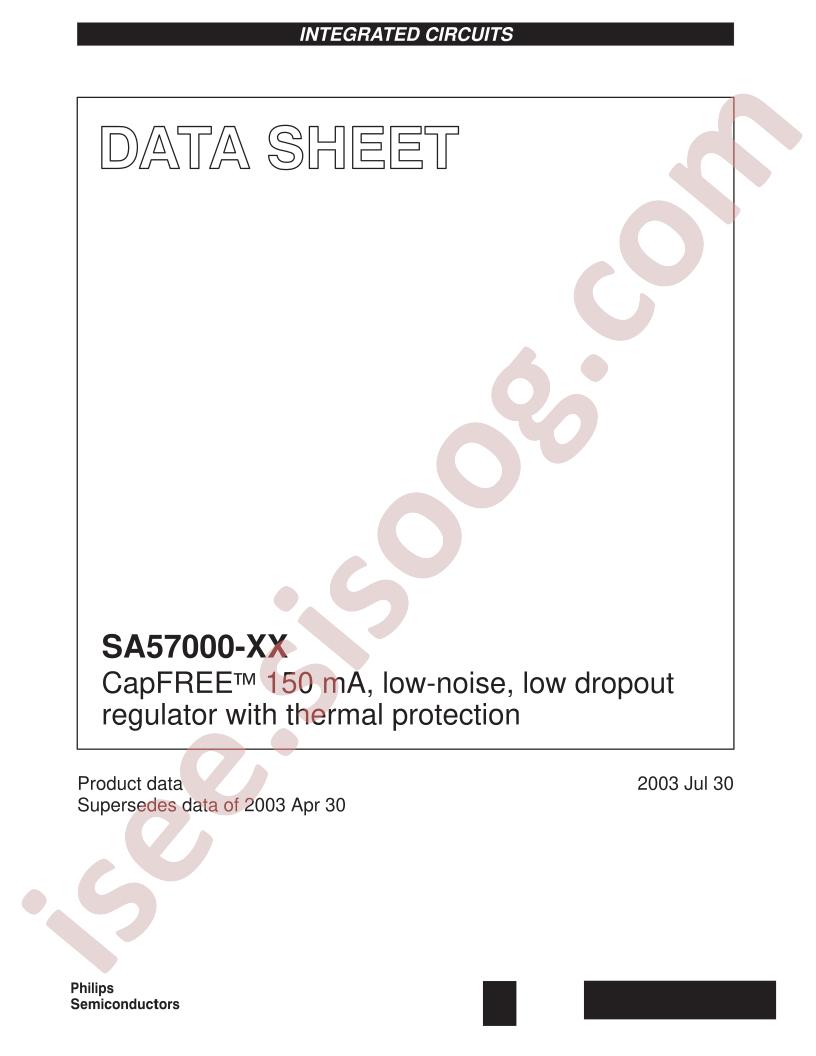

SA57000-xx Datasheet

SA57000-xx

Datasheet specifications

Datasheet's name SA57000-xx
File size 167.659 KB
File type pdf
Number of pages 15

Download Datasheet SA57000-xx

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: NXP USA Inc.
  • Series: CapFREE™
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 6.5V
  • Voltage - Output (Min/Fixed): 3V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.12V @ 50mA
  • Current - Output: 150mA
  • Current - Quiescent (Iq): 150µA
  • PSRR: -
  • Control Features: Enable, Power Good
  • Protection Features: Over Current, Over Temperature
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: SC-74A, SOT-753
  • Supplier Device Package: 5-SO
  • Base Part Number: SA570
  • detail: Linear Voltage Regulator IC 1 Output 150mA 5-SO
