74HC4316N,652 Datasheet

74HC,HCT4316

Datasheet specifications

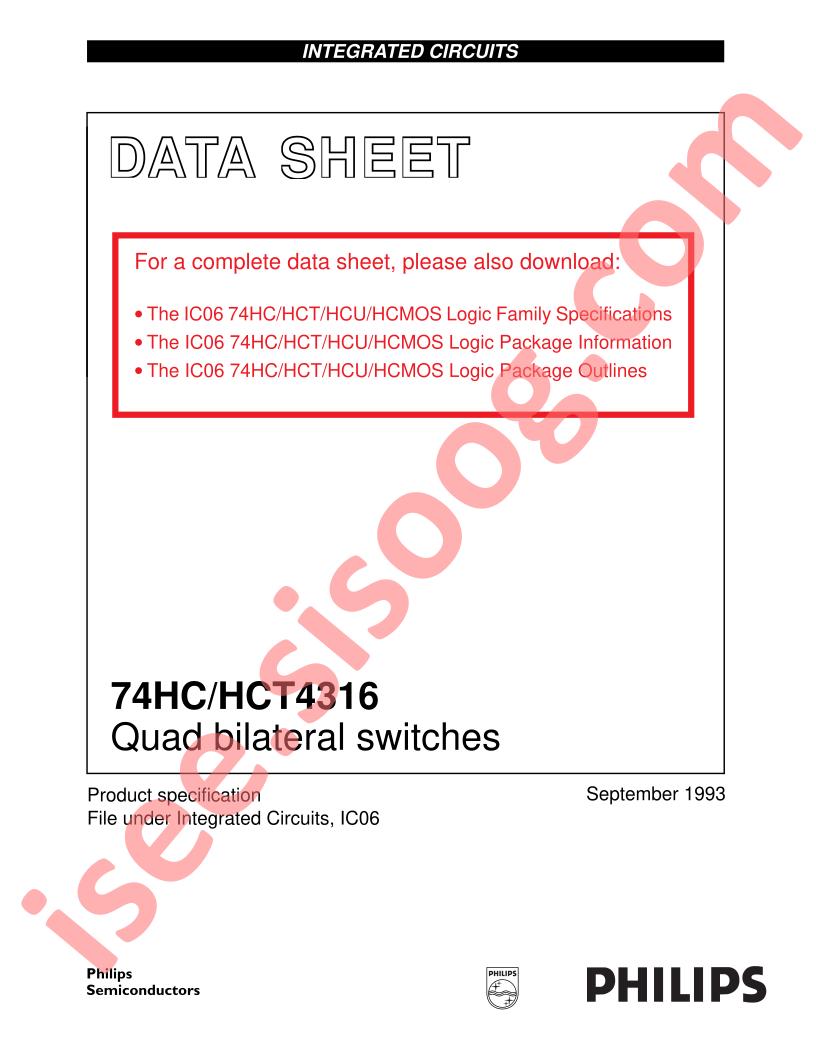

Datasheet's name 74HC,HCT4316
File size 125.934 KB
File type pdf
Number of pages 15

Download Datasheet 74HC,HCT4316

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: NXP USA Inc.
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Circuit: SPST - NO
  • Multiplexer/Demultiplexer Circuit: 1:1
  • Number of Circuits: 4
  • On-State Resistance (Max): 135Ohm
  • Channel-to-Channel Matching (ΔRon): 6Ohm
  • Voltage - Supply, Single (V+): 2V ~ 10V
  • Voltage - Supply, Dual (V±): ±1V ~ 5V
  • Switch Time (Ton, Toff) (Max): 16ns, 16ns
  • -3db Bandwidth: 160MHz
  • Charge Injection: -
  • Channel Capacitance (CS(off), CD(off)): 3.5pF
  • Current - Leakage (IS(off)) (Max): 100nA
  • Crosstalk: -60dB @ 1MHz
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Through Hole
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-DIP
  • Base Part Number: 74HC43
  • detail: 4 Circuit IC Switch 1:1 135Ohm 16-DIP
