دیتاشیت N74F5074D,623

مشخصات دیتاشیت

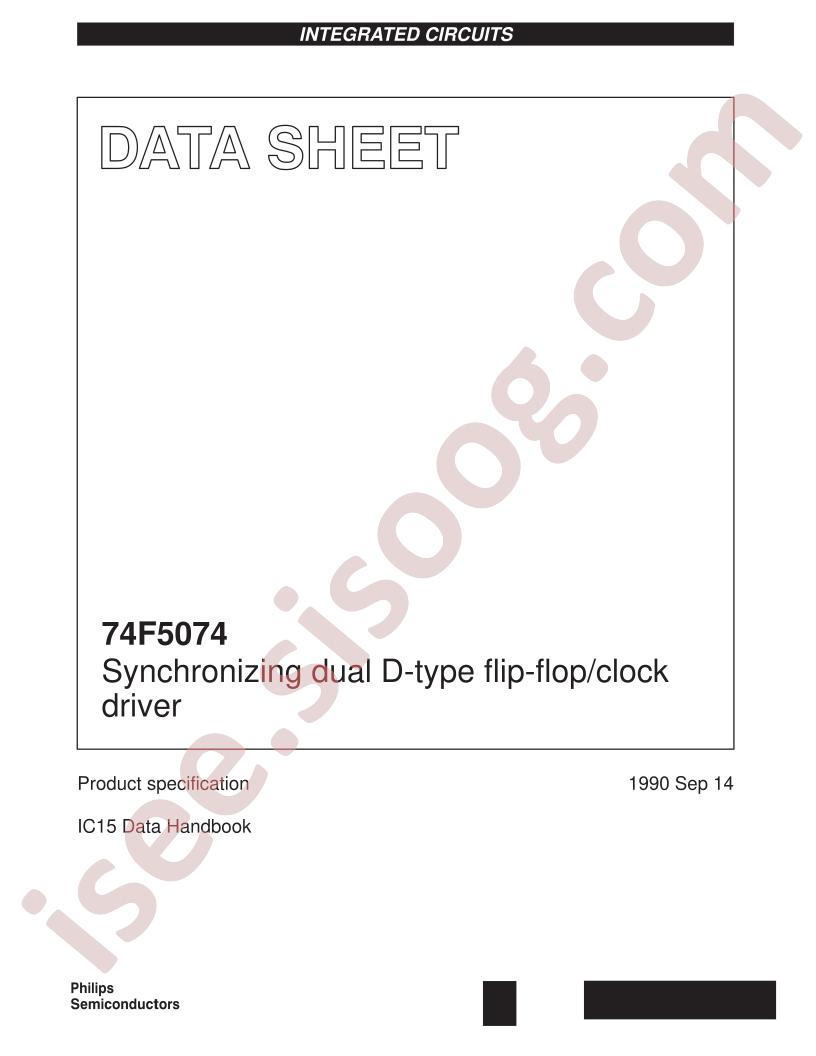

دانلود دیتاشیت 74F5074	74F5074 Datasheet

Manufacturer: NXP USA Inc.
Series: 74F
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Function: Set(Preset) and Reset
Type: D-Type
Output Type: Differential
Number of Elements: 2
Number of Bits per Element: 1
Clock Frequency: 120MHz
Max Propagation Delay @ V, Max CL: 6ns @ 5V, 50pF
Trigger Type: Positive Edge
Current - Output High, Low: 15mA, 20mA
Voltage - Supply: 4.5V ~ 5.5V
Current - Quiescent (Iq): 30mA
Operating Temperature: 0°C ~ 70°C (TA)
Mounting Type: Surface Mount
Supplier Device Package: 14-SO
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Base Part Number: N74F5
detail: Flip Flop 2 Element D-Type 1 Bit Positive Edge 14-SOIC (0.154", 3.90mm Width)
