MIC3839YMM دیتاشیت

مشخصات دیتاشیت

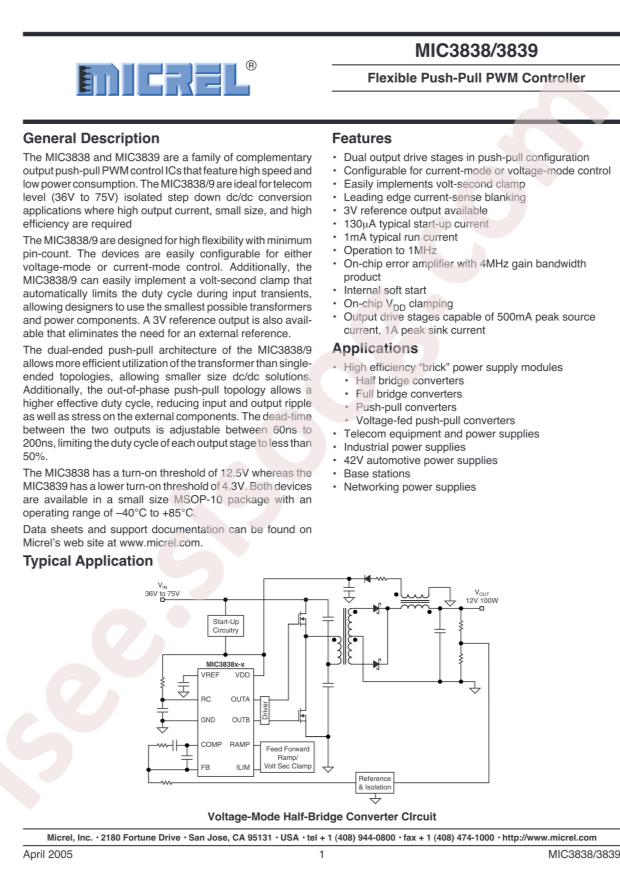

مشاهده دیتاشیت MIC3839YMM	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Full-Bridge;Half-Bridge;Push-pull
Datasheet: Microchip Tech MIC3839YMM
Duty Cycle: 49%
Supply Voltage: 2V~14V
Switching Frequency: 200kHz
Operating Temperature: -40°C~+85°C@(TA)
Package: MSOP-10
Manufacturer: Microchip Tech
Series: -
Packaging: Tube
Part Status: Active
Output Type: Transistor Driver
Function: Step-Up/Step-Down
Output Configuration: Positive, Isolation Capable
Number of Outputs: 1
Output Phases: 1
Voltage - Supply (Vcc/Vdd): 2V ~ 14V
Frequency - Switching: 200kHz
Duty Cycle (Max): 49%
Synchronous Rectifier: No
Clock Sync: No
Serial Interfaces: -
Control Features: Current Limit, Frequency Control, Ramp
Mounting Type: Surface Mount
Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package: 10-MSOP
Base Part Number: MIC3839
detail: Full-Bridge, Half-Bridge, Push-Pull Regulator Positive, Isolation Capable Output Step-Up/Step-Down DC-DC Controller IC 10-MSOP
