دیتاشیت TC1263-3.3VAT
مشخصات دیتاشیت
| نام دیتاشیت |
TC1263
|
| حجم فایل |
300.192
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:

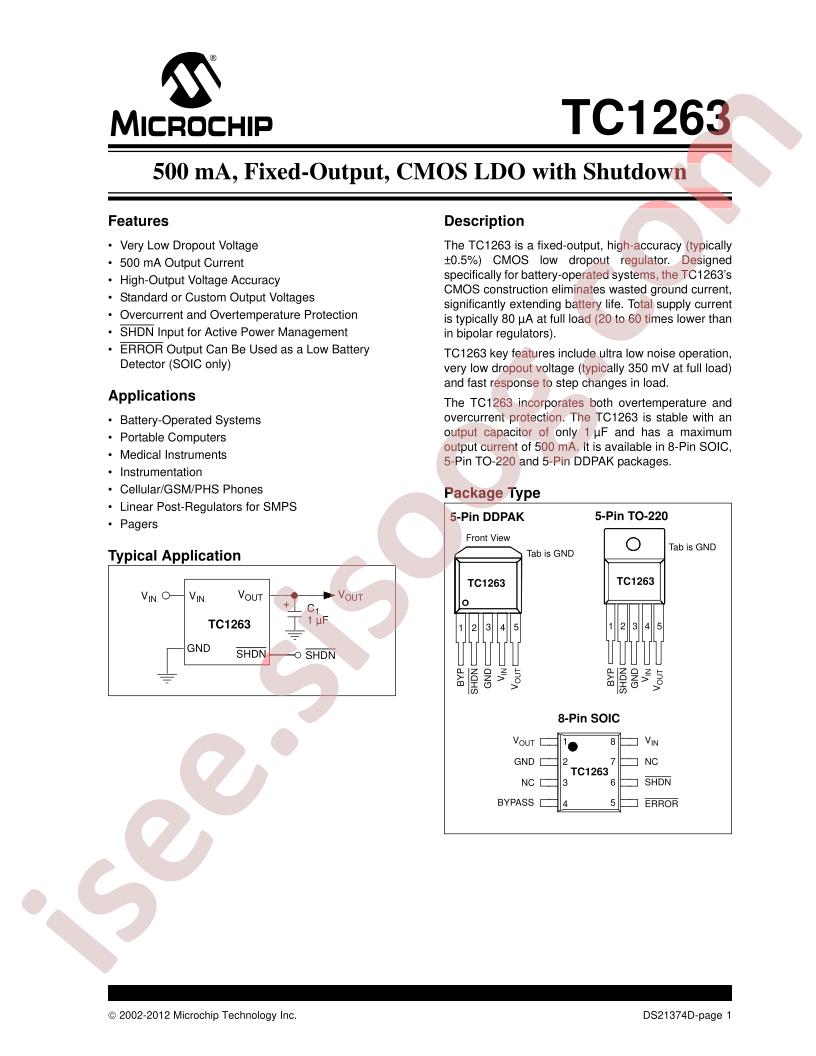

Microchip Tech TC1263-3.3VAT
-
Output Current:
500mA
-
Output Voltage:
3.3V
-
Dropout Voltage:
0.65V@(500mA)
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
130uA
-
Power Supply Rejection Ratio (PSRR):
64dB@(1kHz)
-
Package:
TO-220-5
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.65V @ 500mA
-
Current - Output:
500mA
-
Current - Quiescent (Iq):
130µA
-
PSRR:
64dB (1kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-5
-
Supplier Device Package:
TO-220-5
-
Base Part Number:
TC1263
-
detail:
Linear Voltage Regulator IC 1 Output 500mA TO-220-5
