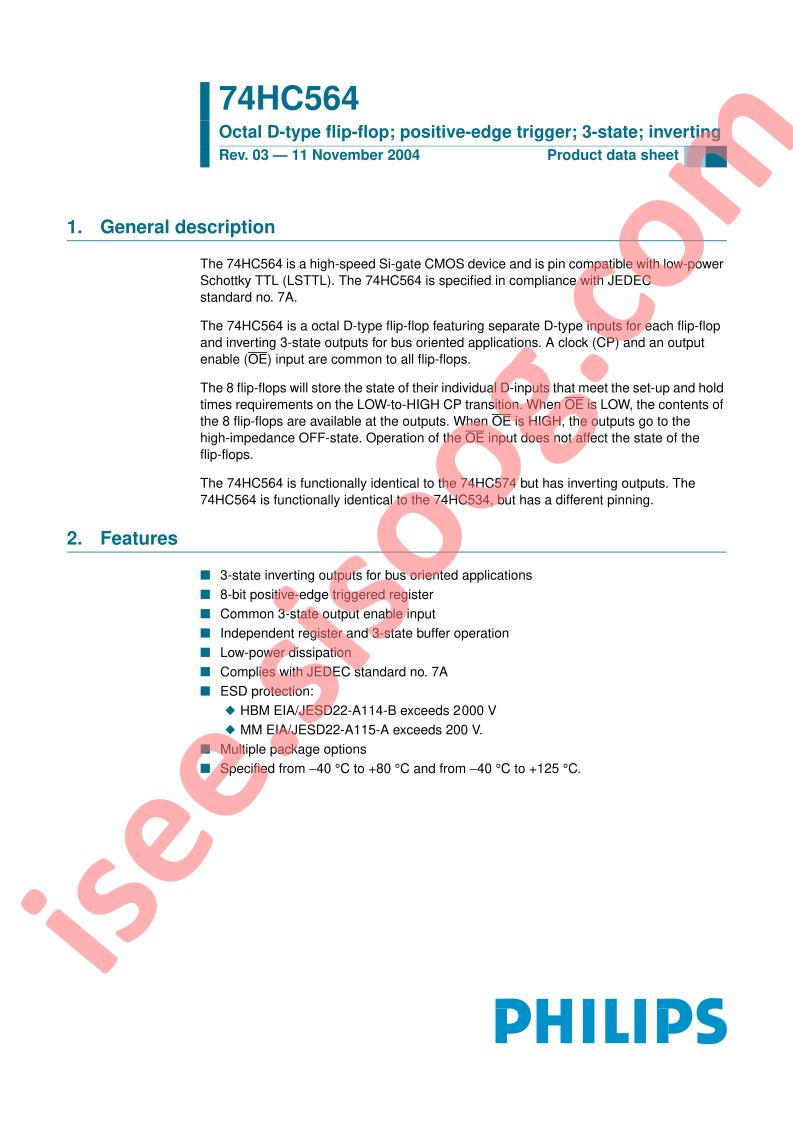

دیتاشیت 74HC564D,653
مشخصات دیتاشیت
| نام دیتاشیت |
74HC564
|
| حجم فایل |
97.724
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
Manufacturer:
NXP USA Inc.
-
Series:
74HC
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Function:
Standard
-
Type:
D-Type
-
Output Type:
Tri-State, Inverted
-
Number of Elements:
1
-
Number of Bits per Element:
8
-
Clock Frequency:
137MHz
-
Max Propagation Delay @ V, Max CL:
28ns @ 6V, 50pF
-
Trigger Type:
Positive Edge
-
Current - Output High, Low:
7.8mA, 7.8mA
-
Voltage - Supply:
2V ~ 6V
-
Current - Quiescent (Iq):
8µA
-
Input Capacitance:
3.5pF
-
Operating Temperature:
-40°C ~ 125°C (TA)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
20-SO
-
Package / Case:
20-SOIC (0.295", 7.50mm Width)
-
Base Part Number:
74HC56
-
detail:
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-SOIC (0.295", 7.50mm Width)
