74LVC38AD,118 دیتاشیت
مشخصات دیتاشیت
|

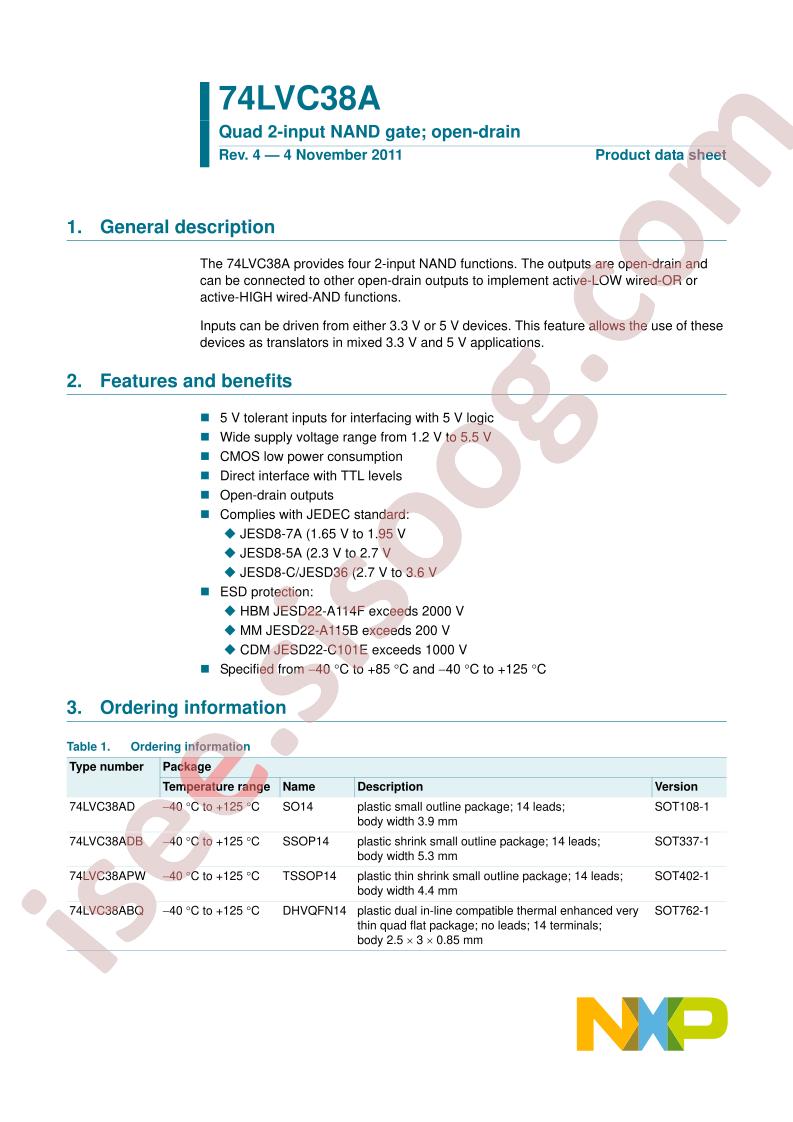

نام دیتاشیت
|
74LVC38A
|
|
حجم فایل
|
276.15
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
74LVC
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Logic Type:
NAND Gate
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
Open Drain
-
Voltage - Supply:
1.2V ~ 5.5V
-
Current - Quiescent (Max):
40µA
-
Current - Output High, Low:
-, 32mA
-
Logic Level - Low:
0.7V ~ 0.8V
-
Logic Level - High:
1.7V ~ 2V
-
Max Propagation Delay @ V, Max CL:
2.3ns @ 3.3V, 50pF
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SO
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
74LVC3
-
detail:
NAND Gate IC 4 Channel Open Drain 14-SO
