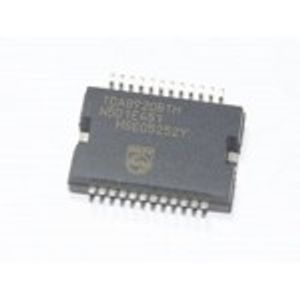

TDA8920B دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TDA8920B
|
|
حجم فایل
|
215.973
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
34
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Type:
Class D
-
Output Type:
1-Channel (Mono) or 2-Channel (Stereo)
-
Max Output Power x Channels @ Load:
210W x 1 @ 6Ohm; 110W x 2 @ 3Ohm
-
Voltage - Supply:
±12.5V ~ 30V
-
Features:
Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
-
Mounting Type:
Surface Mount
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Supplier Device Package:
24-HSOP
-
Package / Case:
24-BSOP (0.433", 11.00mm Width) Exposed Pad
-
Base Part Number:
TDA892
-
detail:
Amplifier IC 1-Channel (Mono) or 2-Channel (Stereo) Class D 24-HSOP
