دیتاشیت TEA1521P/N2,112

TEA152x

مشخصات دیتاشیت

نام دیتاشیت TEA152x
حجم فایل 435.984 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت TEA152x

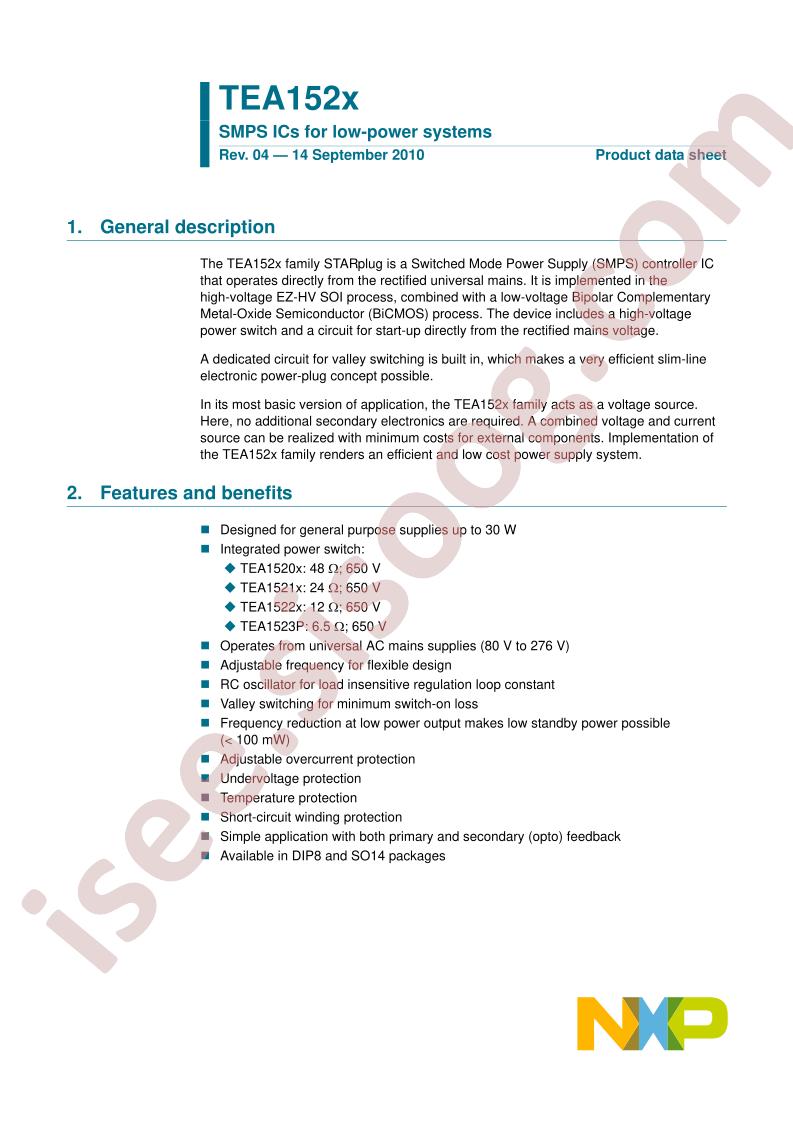

TEA152x Datasheet

مشخصات

  • Manufacturer: NXP USA Inc.
  • Series: STARplug™
  • Packaging: Tube
  • Part Status: Obsolete
  • Output Isolation: Isolated
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 650V
  • Topology: Flyback
  • Voltage - Start Up: 9.5V
  • Voltage - Supply (Vcc/Vdd): 7.5V ~ 40V
  • Duty Cycle: 75%
  • Frequency - Switching: 10kHz ~ 200kHz
  • Power (Watts): 30W
  • Fault Protection: Current Limiting, Over Temperature, Short Circuit
  • Control Features: Frequency Control
  • Operating Temperature: -40°C ~ 145°C (TJ)
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-DIP
  • Mounting Type: Through Hole
  • Base Part Number: TEA152
  • detail: Converter Offline Flyback Topology 10kHz ~ 200kHz 8-DIP
