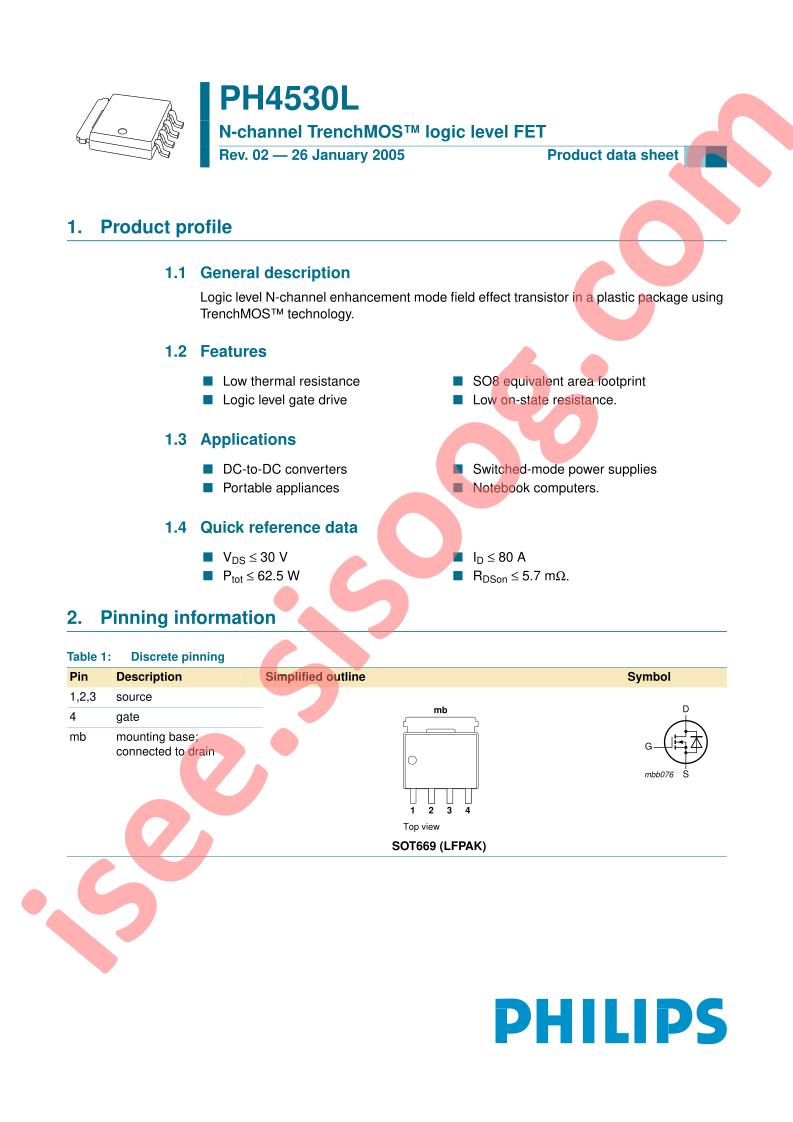

PH4530L,115 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PH4530L
|
|
حجم فایل
|
82.773
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
TrenchMOS™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
80A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
5.7mOhm @ 15A, 10V
-
Vgs(th) (Max) @ Id:
2V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
23.5nC @ 5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1972pF @ 10V
-
FET Feature:
-
-
Power Dissipation (Max):
62.5W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
LFPAK56, Power-SO8
-
Package / Case:
SC-100, SOT-669
-
Base Part Number:
PH45
-
detail:
N-Channel 30V 80A (Tc) 62.5W (Tc) Surface Mount LFPAK56, Power-SO8
