74HCT534N,652 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

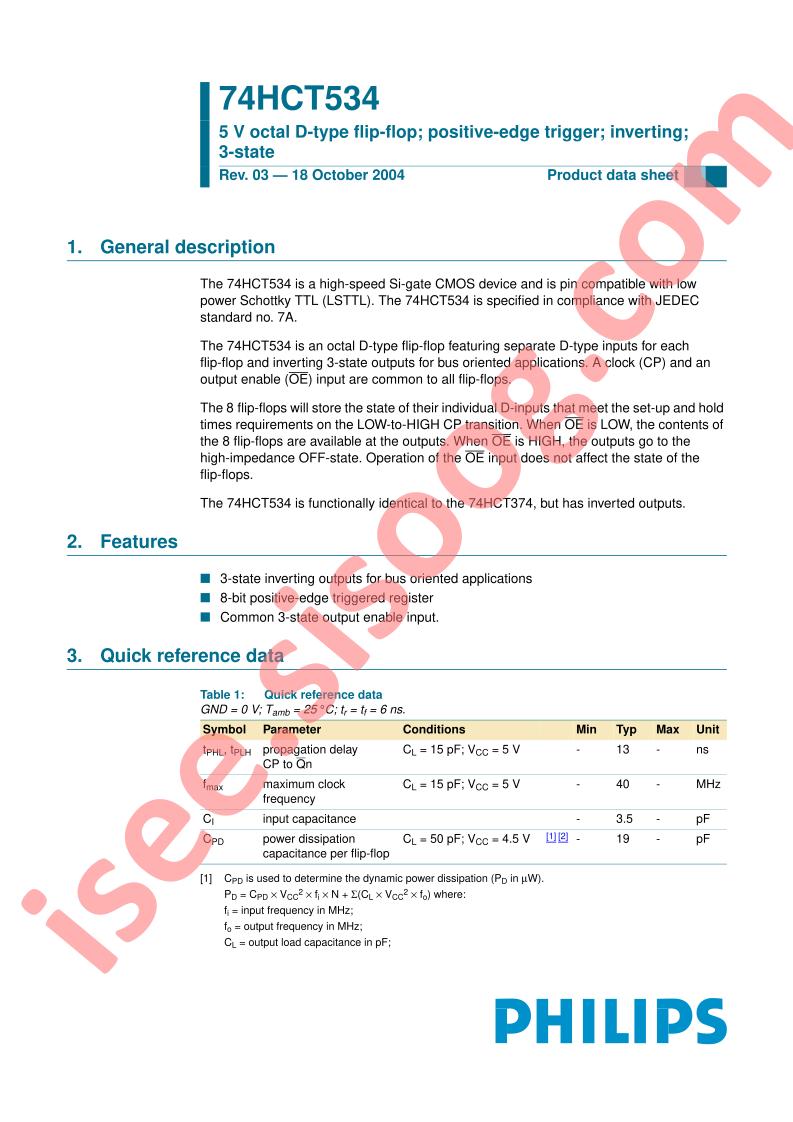

74HCT534
|
|
حجم فایل
|
94.573
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
74HCT
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Function:
Standard
-
Type:
D-Type
-
Output Type:
Tri-State, Inverted
-
Number of Elements:
1
-
Number of Bits per Element:
8
-
Clock Frequency:
40MHz
-
Max Propagation Delay @ V, Max CL:
30ns @ 4.5V, 50pF
-
Trigger Type:
Positive Edge
-
Current - Output High, Low:
6mA, 6mA
-
Voltage - Supply:
4.5V ~ 5.5V
-
Current - Quiescent (Iq):
8µA
-
Input Capacitance:
3.5pF
-
Operating Temperature:
-40°C ~ 125°C (TA)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
20-DIP
-
Package / Case:
20-DIP (0.300", 7.62mm)
-
Base Part Number:
74HCT5
-
detail:
Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
