دیتاشیت NX3L4684TK,132

NX3L4684

مشخصات دیتاشیت

نام دیتاشیت NX3L4684
حجم فایل 352.322 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت NX3L4684

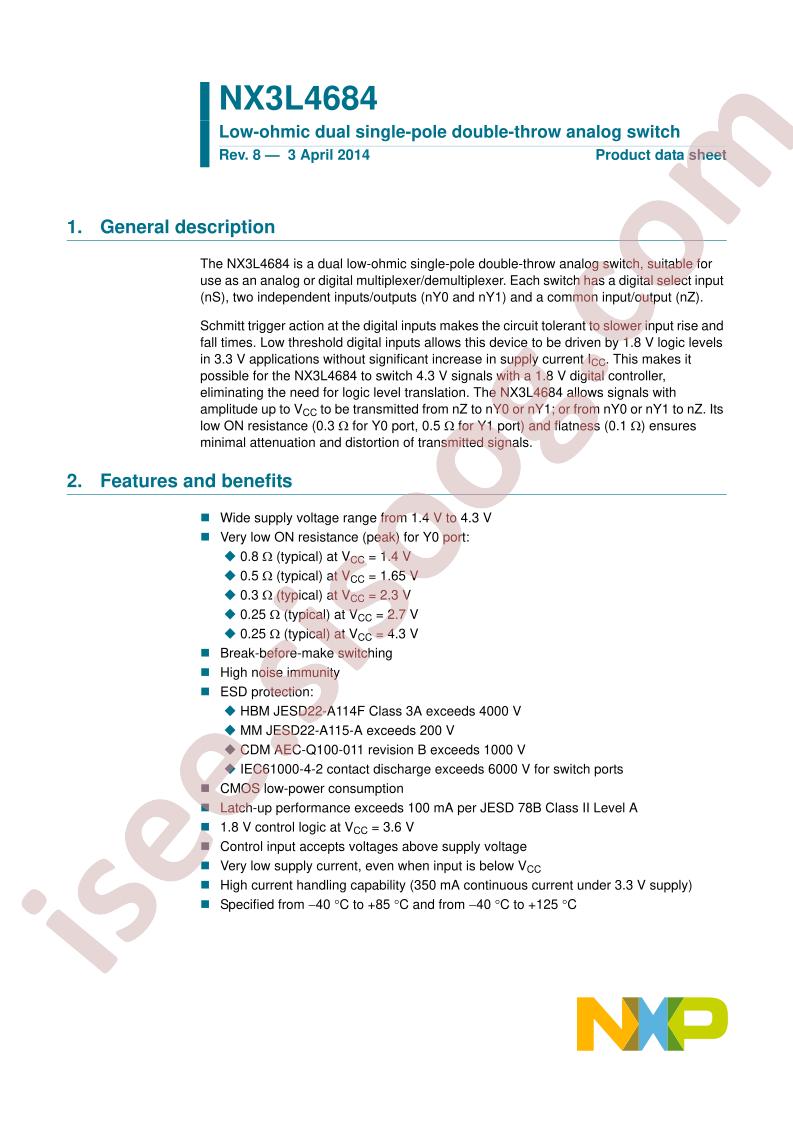

NX3L4684 Datasheet

مشخصات

  • Manufacturer: NXP USA Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Switch Circuit: SPDT
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Number of Circuits: 2
  • On-State Resistance (Max): 750mOhm
  • Channel-to-Channel Matching (ΔRon): 40mOhm
  • Voltage - Supply, Single (V+): 1.4V ~ 4.3V
  • Voltage - Supply, Dual (V±): -
  • Switch Time (Ton, Toff) (Max): 45ns, 20ns
  • -3db Bandwidth: 20MHz
  • Charge Injection: 50pC
  • Channel Capacitance (CS(off), CD(off)): 35pF
  • Current - Leakage (IS(off)) (Max): 10nA
  • Crosstalk: -90dB @ 100kHz
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 10-VFDFN Exposed Pad
  • Supplier Device Package: 10-HVSON (3x3)
  • Base Part Number: NX3
  • detail: 2 Circuit IC Switch 2:1 750mOhm 10-HVSON (3x3)
