21-0248 Pkg Drawing Datasheet

21-0248 Pkg Drawing

Datasheet specifications

Datasheet's name 21-0248 Pkg Drawing
File size 205.075 KB
File type pdf
Number of pages 1

Download Datasheet 21-0248 Pkg Drawing

Download Datasheet

Other documentations

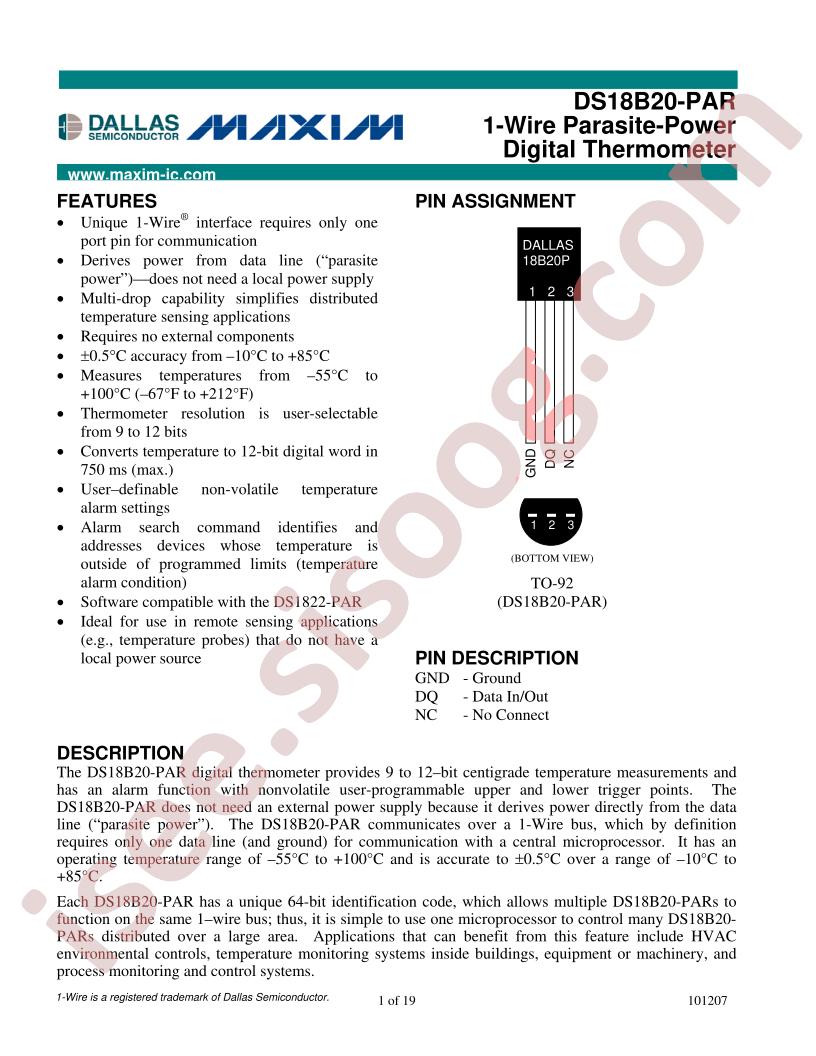

DS18B20-PAR Datasheet 19 pages

Technical specifications

  • Operating Temperature: -55°C ~ 125°C
  • Features: Output Switch, Programmable Limit, Programmable Resolution
  • Base Part Number: DS18B20
  • Supplier Device Package: TO-92-3
  • Sensor Type: Digital, Local
  • Resolution: 12 b
  • Part Status: Active
  • Sensing Temperature - Local: -55°C ~ 125°C
  • Sensing Temperature - Remote: -
  • Output Type: 1-Wire®
  • Series: -
  • Mounting Type: Through Hole
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • Test Condition: -10°C ~ 85°C (-55°C ~ 125°C)
  • Packaging: Cut Tape (CT)
  • Voltage - Supply: 3V ~ 5.5V
  • Accuracy - Highest (Lowest): ±0.5°C (±2°C)
  • Manufacturer: Maxim Integrated
  • detail: Temperature Sensor Digital, Local -55°C ~ 125°C 12 b TO-92-3
