دیتاشیت MTD6501G-LC1

MTD6501(C,D,G)

مشخصات دیتاشیت

نام دیتاشیت MTD6501(C,D,G)
حجم فایل 927.281 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت MTD6501(C,D,G)

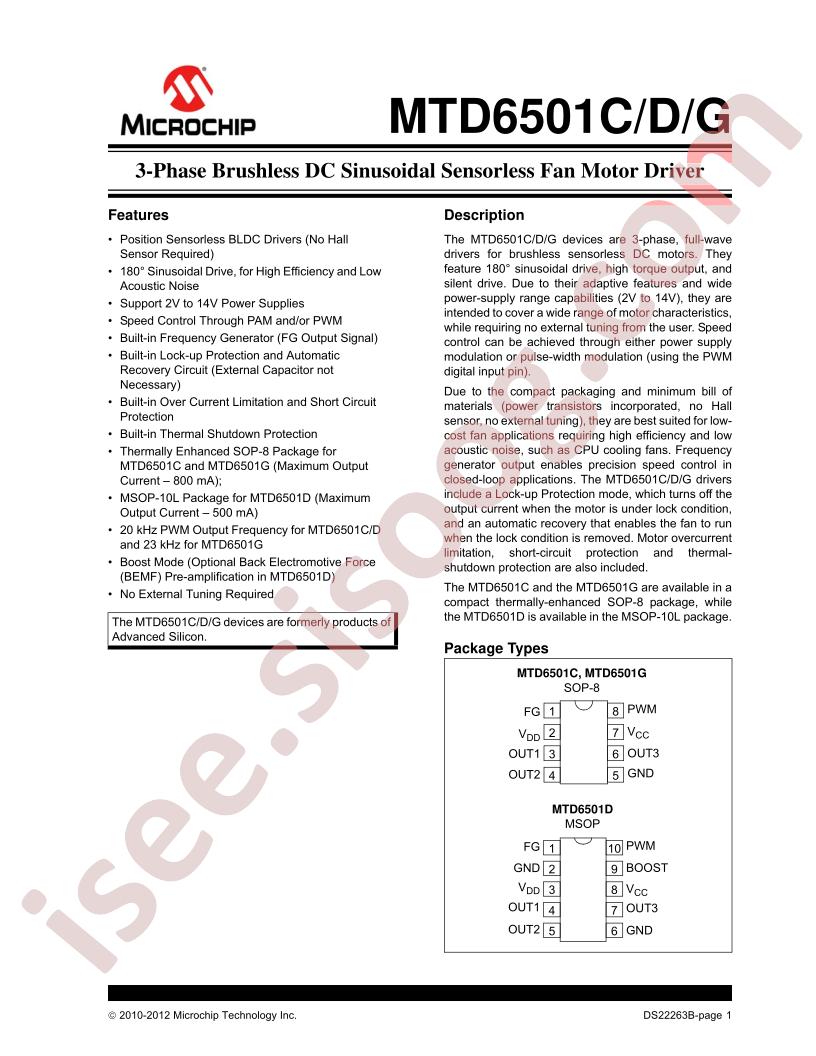

MTD6501(C,D,G) Datasheet

مشخصات

  • RoHS: true
  • Type: 无刷直流BLDC
  • Category: Power Supply Chip/Motor Driver ICs
  • Interface: PWM
  • Output Current: 800mA
  • Supply Voltage: 2V~14V
  • Operating Temperature: -30°C~+150°C@(Tj)
  • Package: SOP-8-EP
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Motor Type - Stepper: -
  • Motor Type - AC, DC: Brushless DC (BLDC)
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (3)
  • Technology: DMOS
  • Step Resolution: -
  • Applications: Fan Motor Driver
  • Current - Output: 800mA
  • Voltage - Supply: 2V ~ 14V
  • Voltage - Load: 2V ~ 14V
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOP-EP
  • Base Part Number: MTD6501
  • detail: Motor Driver DMOS PWM 8-SOP-EP
