PCA9536 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

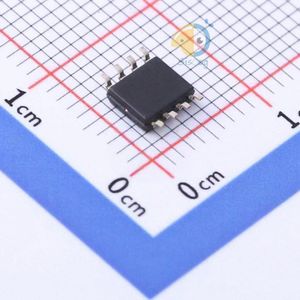

PCA9536
|
|
حجم فایل
|
203.536
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Number of I/O:
4
-
Interface:
I²C, SMBus
-
Interrupt Output:
No
-
Features:
POR
-
Output Type:
Push-Pull
-
Current - Output Source/Sink:
10mA, 25mA
-
Clock Frequency:
400kHz
-
Voltage - Supply:
2.3V ~ 5.5V
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Surface Mount
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
8-TSSOP
-
Base Part Number:
PCA95
-
detail:
I/O Expander 4 I²C, SMBus 400kHz 8-TSSOP
