MAX4659ESA+T دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت MAX4659ESA+T	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

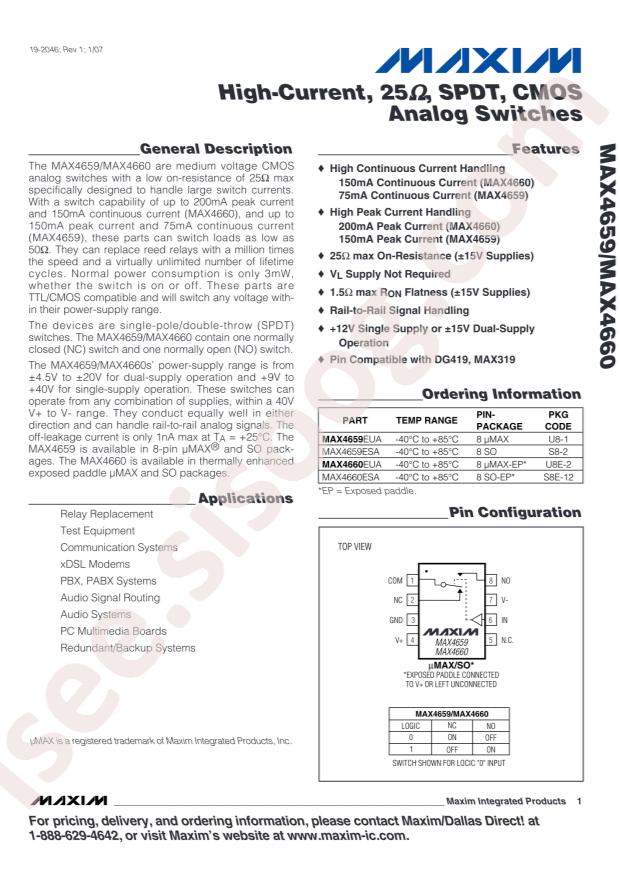

Datasheet: Analog Devices Inc./Maxim Integrated MAX4659ESA+T
Supply Voltage: 9V~40V
Switch Circuit: SPDT(SPDT)
Number of Channels: 1
On-State Resistance (Max): 25Ω
Package: SOP-8
Manufacturer: Analog Devices Inc./Maxim Integrated
Multiplexer/Demultiplexer Circuit: 2:1
Part Status: Active
Charge Injection: 1.5pC
-3db Bandwidth: 225MHz
Operating Temperature: -40°C ~ 85°C (TA)
Voltage - Supply, Dual (V±): ±4.5V ~ 20V
Supplier Device Package: 8-SOIC
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Switch Time (Ton, Toff) (Max): -
Packaging: Cut Tape (CT)
Channel-to-Channel Matching (ΔRon): 400mOhm
Voltage - Supply, Single (V+): 9V ~ 40V
Channel Capacitance (CS(off), CD(off)): 6pF
Mounting Type: Surface Mount
Series: -
Crosstalk: -76dB @ 1MHz
Number of Circuits: 1
Current - Leakage (IS(off)) (Max): 1nA
Base Part Number: MAX4659
detail: 1 Circuit IC Switch 2:1 25Ohm 8-SOIC
