دیتاشیت MIC4600YML-TR

MIC4600

مشخصات دیتاشیت

نام دیتاشیت MIC4600
حجم فایل 1993.148 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت MIC4600

MIC4600 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech MIC4600YML-TR
  • Fall Time: 13.5ns
  • Load Type: MOSFET
  • Rise Time: 15ns
  • Supply Voltage: 4.5V~28V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): -
  • Package: QFN-16-EP(3x3)
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Discontinued at Digi-Key
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 28V
  • Logic Voltage - VIL, VIH: 0.65V, 1.4V
  • Current - Peak Output (Source, Sink): -
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 15ns, 13.5ns
  • Mounting Type: Surface Mount, Wettable Flank

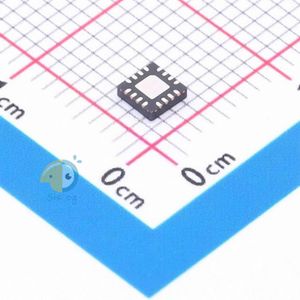

  • Package / Case: 16-VFQFN Exposed Pad
  • Supplier Device Package: 16-VQFN (3x3)
  • Base Part Number: MIC4600
  • detail: Half-Bridge Gate Driver IC Non-Inverting 16-VQFN (3x3)
