- دیتاشیت MAX256ASA+T

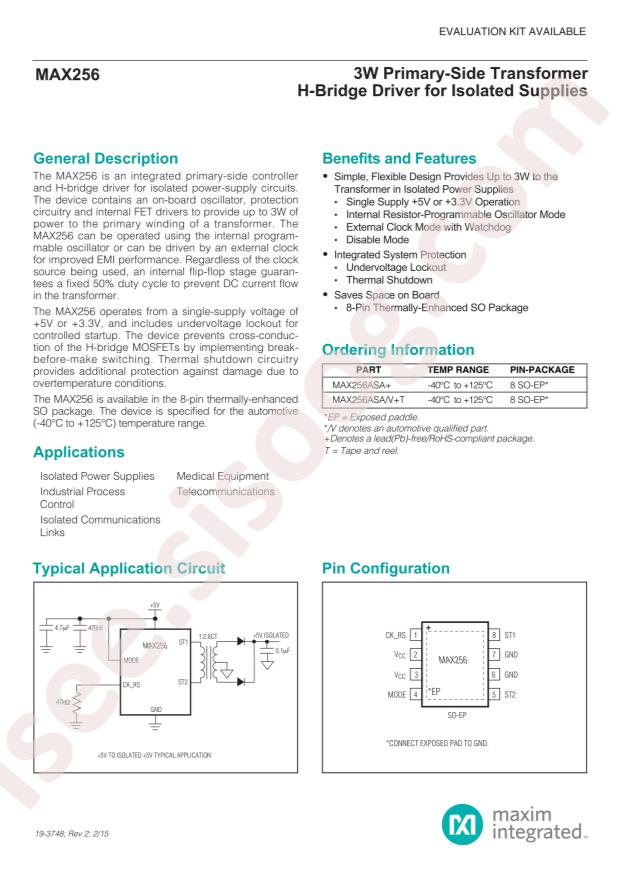

MAX256ASA+T دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX256ASA+T |
|---|---|
| حجم فایل | 79.307 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 1 |
دانلود دیتاشیت MAX256ASA+T |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
MAXREFDES11# Ref Design 11 pages
MAXREFDES5# Ref Design 12 pages
MAXREFDES4# Ref Design 10 pages
MAX256 Datasheet 14 pages
MAXREFDES7# 5 pages
MAXREFDES8# 5 pages
مشخصات فنی
- RoHS: true
- Feature: Thermal Protection(OPT)
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Analog Devices Inc./Maxim Integrated MAX256ASA+T
- Load Type: MOSFET
- Supply Voltage: 3V~5.5V
- Driven Configuration: Half Bridge
- Operating Temperature: -40°C~+150°C@(Tj)
- Package: SO-8-EP
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Applications: Transformers
- Fault Protection: ESD, Over Temperature, UVLO
- Features: Internal Oscillator, Watchdog Timer
- Supplier Device Package: 8-SO-EP
- Rds On (Typ): 500mOhm LS + HS
- Output Configuration: Half Bridge (2)
- Current - Output / Channel: 1A
- Part Status: Active
- Mounting Type: Surface Mount
- Series: -
- Interface: Logic
- Base Part Number: MAX256
- Voltage - Load: 3V ~ 5.5V
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Technology: Power MOSFET
- Packaging: Cut Tape (CT)
- Voltage - Supply: 3V ~ 5.5V
- Current - Peak Output: -
- detail: Half Bridge (2) Driver Transformers Power MOSFET 8-SO-EP
