VT1697SBFQX دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت VT1697SBFQX	دانلود دیتاشیت

RoHS: true
Feature: Overcurrent Protection(OCP);Thermal Protection(OPT);Short-Circuit Protection(SCP)
Category: Power Supply Chip/Gate Drive ICs
Datasheet: Analog Devices Inc./Maxim Integrated VT1697SBFQX
Supply Voltage: 1.71V~1.98V
Operating Temperature: -40°C~+125°C@(Tj)

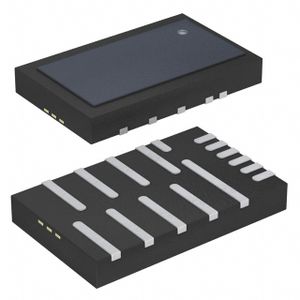

Package: FCQFN-16(3.75x6)
Manufacturer: Analog Devices Inc./Maxim Integrated
Applications: General Purpose
Fault Protection: Current Limiting, Over Temperature, Short Circuit, UVLO
Features: Diode Emulation, Status Flag
Supplier Device Package: 16-FCQFN (6x3.75)
Rds On (Typ): -
Output Configuration: Half Bridge
Current - Output / Channel: -
Load Type: Inductive
Part Status: Active
Mounting Type: Surface Mount
Series: -
Interface: PWM
Base Part Number: VT1697
Voltage - Load: 8.5V ~ 14V
Package / Case: 16-VFQFN
Technology: Power MOSFET
Packaging: Cut Tape (CT)
Voltage - Supply: 1.71V ~ 1.98V
Current - Peak Output: 55A
detail: Half Bridge Driver General Purpose Power MOSFET 16-FCQFN (6x3.75)
