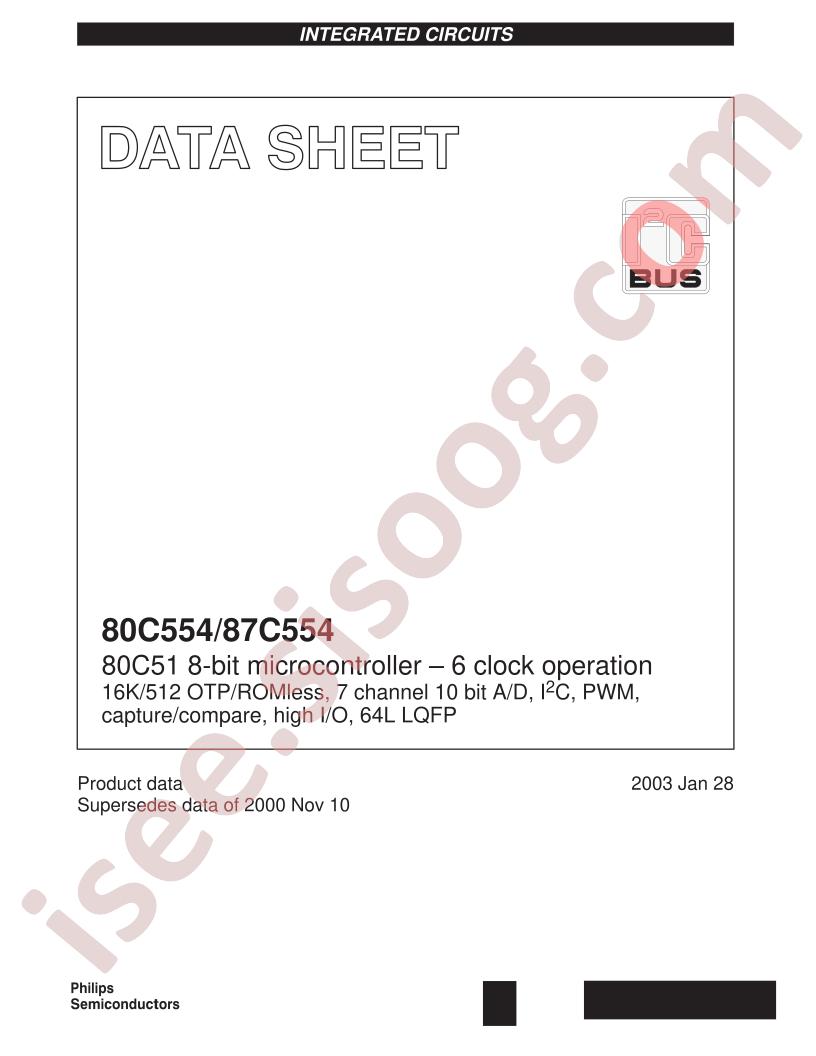

- Datasheet 80C554, 87C554
P80C554SFBD,157 Datasheet
Datasheet specifications
| Datasheet's name | 80C554, 87C554 |
|---|---|
| File size | 397.709 KB |
| File type | |
| Number of pages | 76 |
Download Datasheet 80C554, 87C554 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: NXP USA Inc.
- Series: 80C
- Packaging: Tray
- Part Status: Obsolete
- Core Processor: 8051
- Core Size: 8-Bit
- Speed: 16MHz
- Connectivity: EBI/EMI, I²C, UART/USART
- Peripherals: POR, PWM, WDT
- Number of I/O: 40
- Program Memory Size: -
- Program Memory Type: ROMless
- EEPROM Size: -
- RAM Size: 512 x 8
- Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V
- Data Converters: A/D 7x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (10x10)
- Base Part Number: P80C55
- detail: 8051 80C Microcontroller IC 8-Bit 16MHz ROMless 64-LQFP (10x10)
