دیتاشیت VN0606L-G-P003

VN0606

مشخصات دیتاشیت

نام دیتاشیت VN0606
حجم فایل 557.942 کیلوبایت
نوع فایل pdf
تعداد صفحات 3

دانلود دیتاشیت VN0606

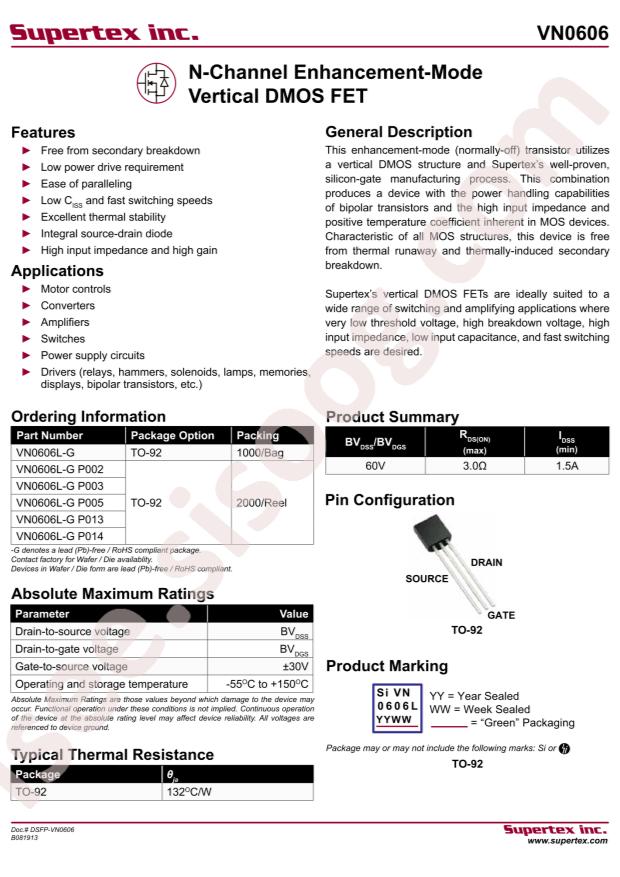

VN0606 Datasheet

مشخصات

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Microchip Tech VN0606L-G-P003
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 1W
  • Input Capacitance (Ciss@Vds): 50pF@25V
  • Continuous Drain Current (Id): 330mA
  • Gate Threshold Voltage (Vgs(th)@Id): 2V@1mA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3Ω@1A,10V
  • Package: TO-92-3
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 330mA (Tj)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 3Ohm @ 1A, 10V
  • Vgs(th) (Max) @ Id: 2V @ 1mA
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 50pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 1W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • detail: N-Channel 60V 330mA (Tj) 1W (Tc) Through Hole TO-92-3
