دیتاشیت VN2460N3-G-P003

VN2460

مشخصات دیتاشیت

نام دیتاشیت VN2460
حجم فایل 717.04 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت VN2460

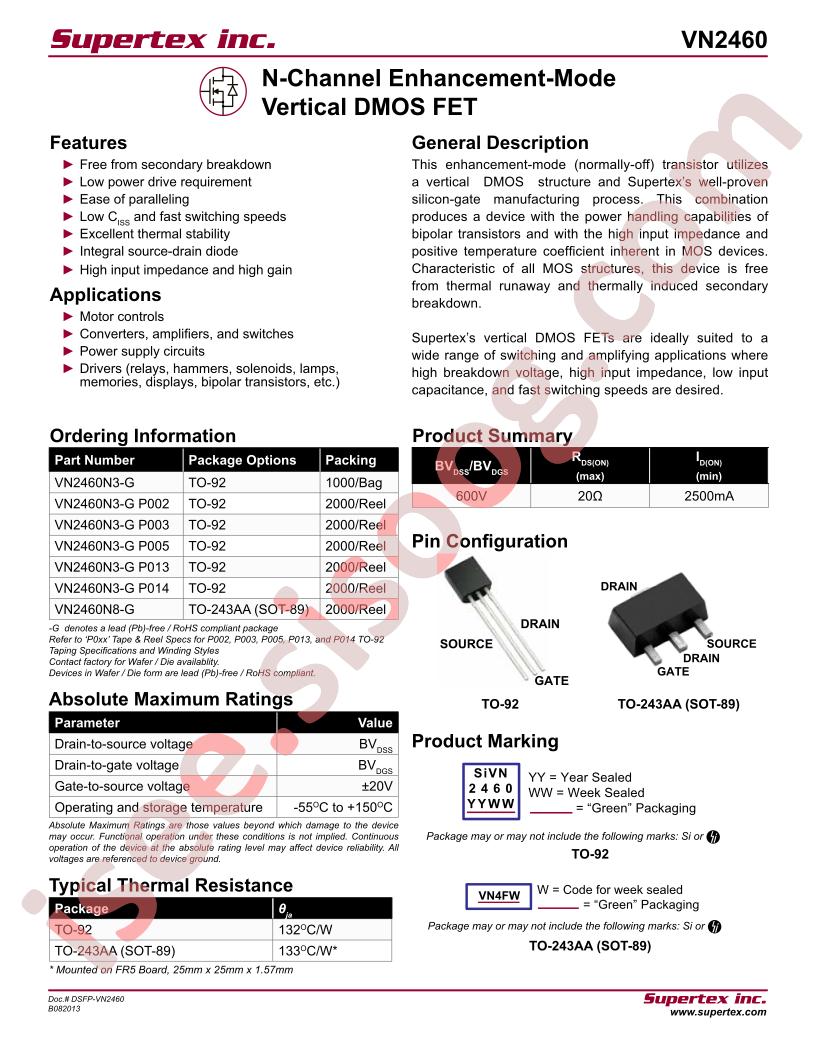

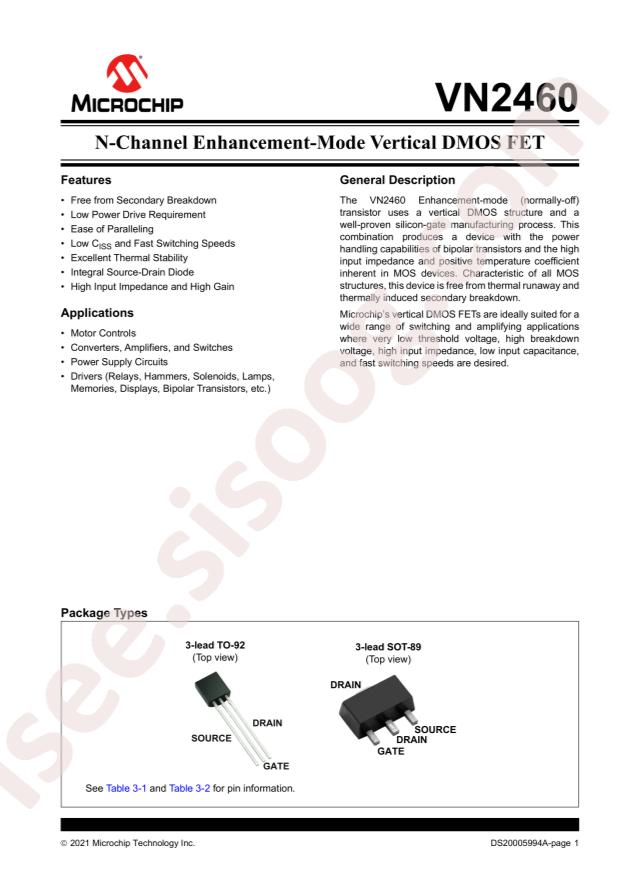

VN2460 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 160mA (Tj)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 20Ohm @ 100mA, 10V
  • Vgs(th) (Max) @ Id: 4V @ 2mA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 150pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 1W (Ta)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • detail: N-Channel 600V 160mA (Tj) 1W (Ta) Through Hole TO-92-3
