دیتاشیت BSN254A,126
مشخصات دیتاشیت
| نام دیتاشیت | BSN254, BSN254A |
|---|---|
| حجم فایل | 69.126 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت BSN254, BSN254A |

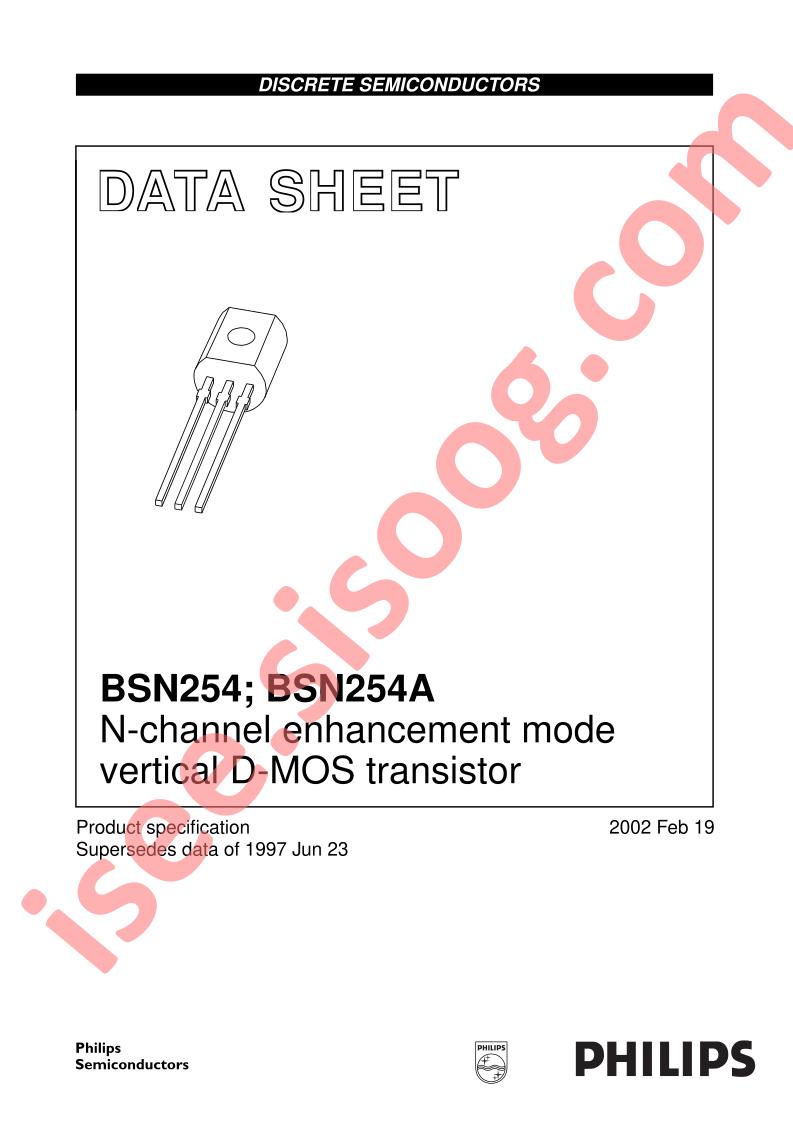

BSN254, BSN254A Datasheet |
|---|
مشخصات
- Manufacturer: NXP USA Inc.
- Series: -
- Packaging: Tape & Box (TB)
- Part Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 250V
- Current - Continuous Drain (Id) @ 25°C: 310mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.4V, 10V
- Rds On (Max) @ Id, Vgs: 5Ohm @ 300mA, 10V
- Vgs(th) (Max) @ Id: 2V @ 1mA
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 120pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-92-3
- Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Base Part Number: BSN2
- detail: N-Channel 250V 310mA (Ta) 1W (Ta) Through Hole TO-92-3
