دیتاشیت BUK7528-55,127

BUK7528-55

مشخصات دیتاشیت

نام دیتاشیت BUK7528-55
حجم فایل 54.216 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت BUK7528-55

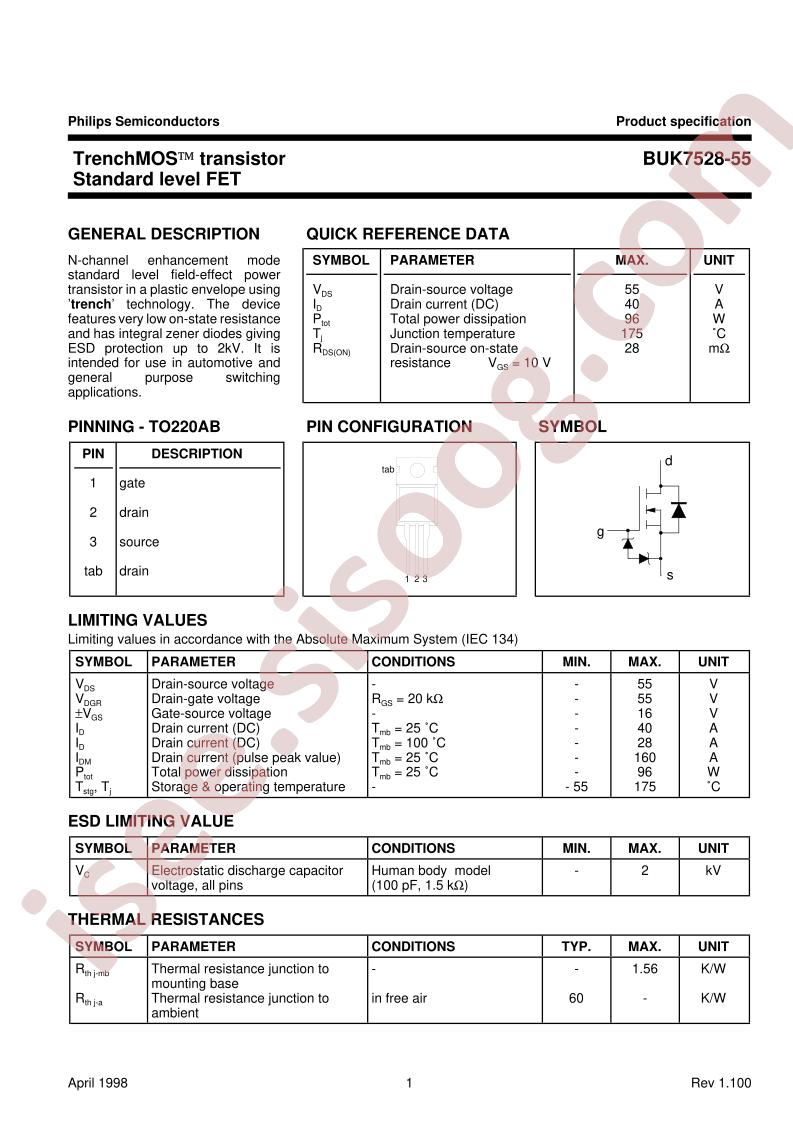

BUK7528-55 Datasheet

مشخصات

  • Manufacturer: NXP USA Inc.
  • Series: TrenchMOS™
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 55V
  • Current - Continuous Drain (Id) @ 25°C: 40A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 28mOhm @ 20A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 1mA
  • Vgs (Max): ±16V
  • Input Capacitance (Ciss) (Max) @ Vds: 1300pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 96W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: BUK75
  • detail: N-Channel 55V 40A (Tc) 96W (Tc) Through Hole TO-220AB
