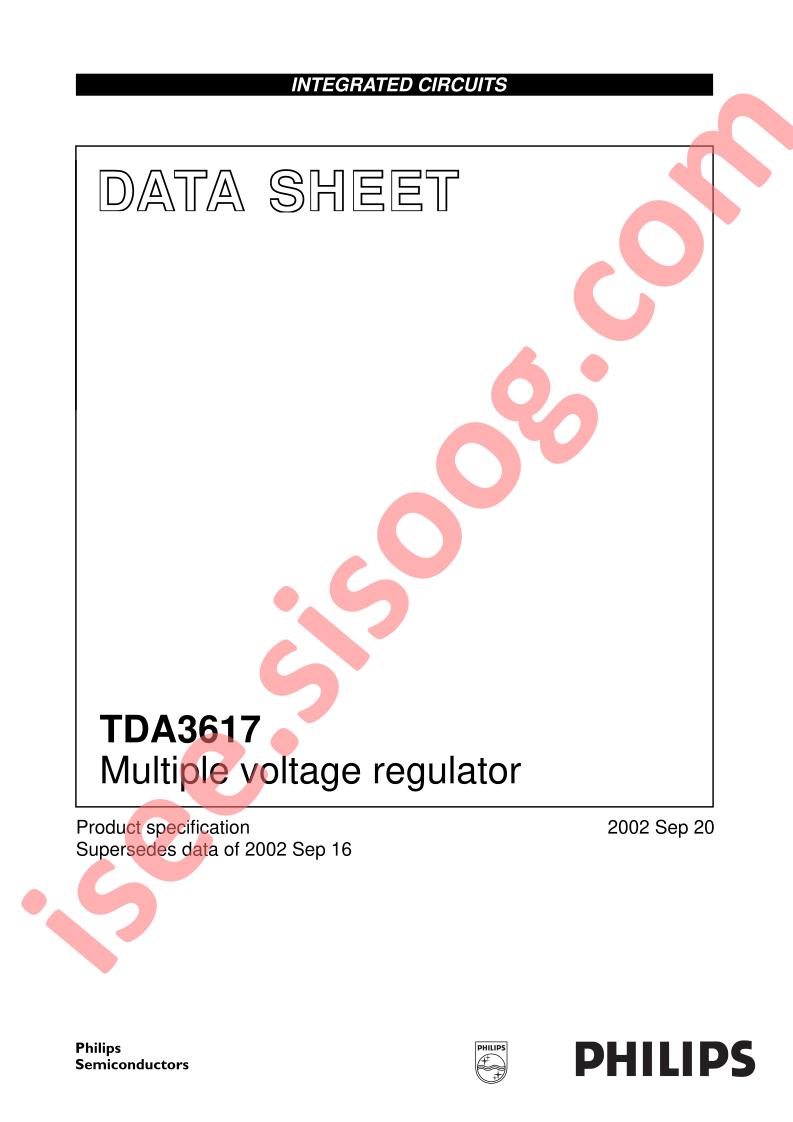

دیتاشیت TDA3617J/N1,112
مشخصات دیتاشیت
| نام دیتاشیت |
TDA3617
|
| حجم فایل |
86.411
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
16
|
مشخصات
-
Manufacturer:
NXP USA Inc.
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
3
-
Voltage - Input (Max):
17.5V
-
Voltage - Output (Min/Fixed):
9V, 5V, 3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
1V @ 1.3A, 1.5V @ 600mA, -
-
Current - Output:
1.3A, 600mA, 300mA
-
Current - Quiescent (Iq):
40µA
-
PSRR:
70dB (3kHz)
-
Control Features:
Enable, Hold
-
Protection Features:
Load Dump, Over Current, Over Temperature, Short Circuit, Transient Voltage
-
Operating Temperature:
-40°C ~ 85°C
-
Mounting Type:
Through Hole
-
Package / Case:
9-SIP Formed Leads
-
Supplier Device Package:
9-PDBS
-
Base Part Number:
TDA361
-
detail:
Linear Voltage Regulator IC 3 Output 1.3A, 600mA, 300mA 9-PDBS
