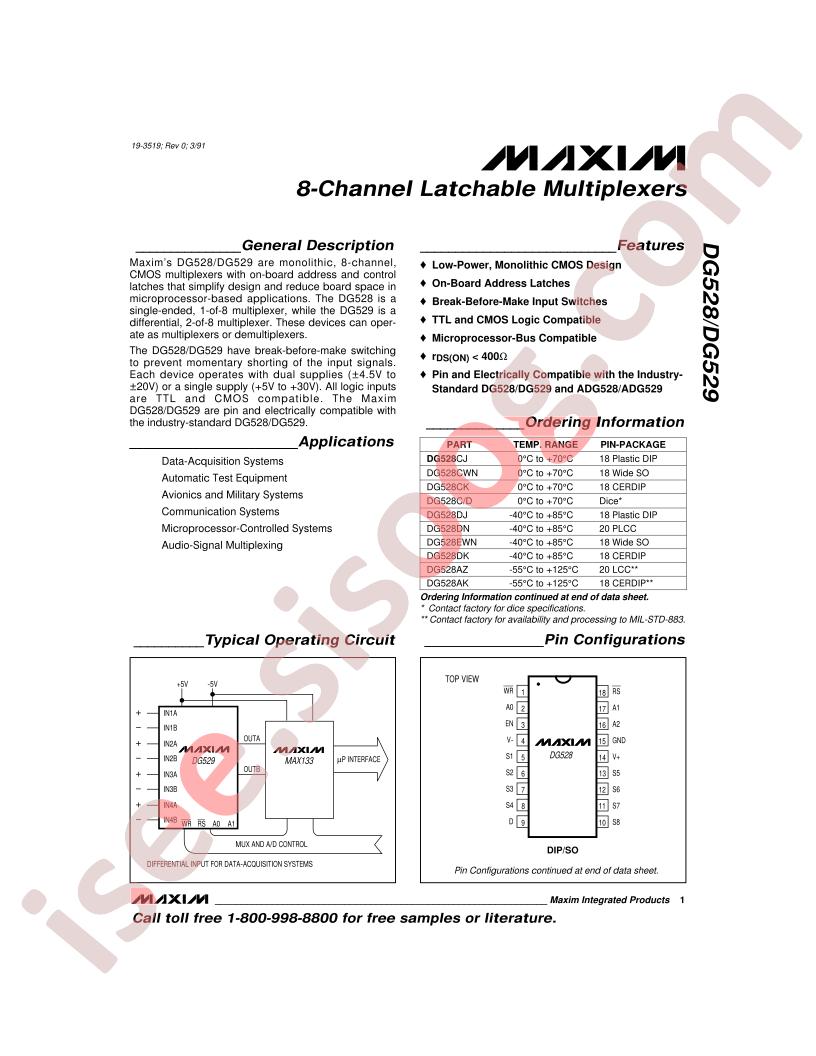

DG528CJ+ Datasheet
Datasheet specifications
|
Datasheet's name
|
DG528CJ+
|
|
File size
|
37.149
KB
|
|
File type
|
pdf
|
|
Number of pages
|
12
|
Technical specifications
-
RoHS:
true
-
Category:
Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
-
Datasheet:
Analog Devices Inc./Maxim Integrated DG528CJ+
-
Turn-on time:
1.5us
-
Turn-off time:
1.5us
-
Supply Voltage:
5V~30V
-
Switch Circuit:
-
-
Number of Channels:
1
-
On-State Resistance (Max):
450Ω
-
Package:
PDIP-18
-
Manufacturer:
Analog Devices Inc./Maxim Integrated
-
Multiplexer/Demultiplexer Circuit:
8:1
-
Part Status:
Active
-
Charge Injection:
4pC
-
-3db Bandwidth:
-
-
Operating Temperature:
0°C ~ 70°C (TA)
-
Voltage - Supply, Dual (V±):
±4.5V ~ 20V
-
Supplier Device Package:
18-PDIP
-
Package / Case:
18-DIP (0.300", 7.62mm)
-
Switch Time (Ton, Toff) (Max):
1.5µs, 1.5µs
-
Packaging:
Tube
-
Channel-to-Channel Matching (ΔRon):
27Ohm
-
Voltage - Supply, Single (V+):
5V ~ 30V
-
Channel Capacitance (CS(off), CD(off)):
5pF, 25pF
-
Mounting Type:
Through Hole
-
Series:
-
-
Crosstalk:
-
-
Number of Circuits:
1
-
Current - Leakage (IS(off)) (Max):
5nA
-
Base Part Number:
DG528
-
detail:
1 Circuit IC Switch 8:1 450Ohm 18-PDIP
