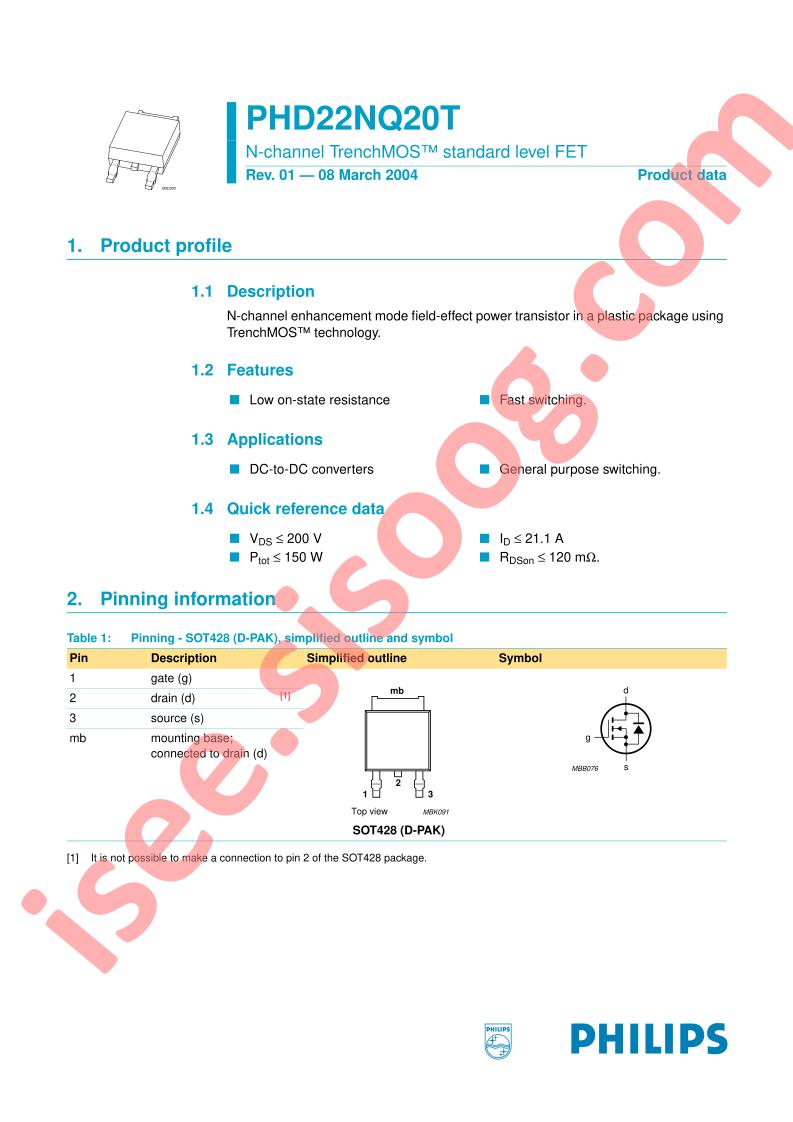

PHD22NQ20T دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PHD22NQ20T
|
|
حجم فایل
|
93.719
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
TrenchMOS™
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
200V
-
Current - Continuous Drain (Id) @ 25°C:
21.1A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
120mOhm @ 12A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
30.8nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1380pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
150W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
PHD22
-
detail:
N-Channel 200V 21.1A (Tc) 150W (Tc) Surface Mount DPAK
