PHP71NQ03LT,127 دیتاشیت

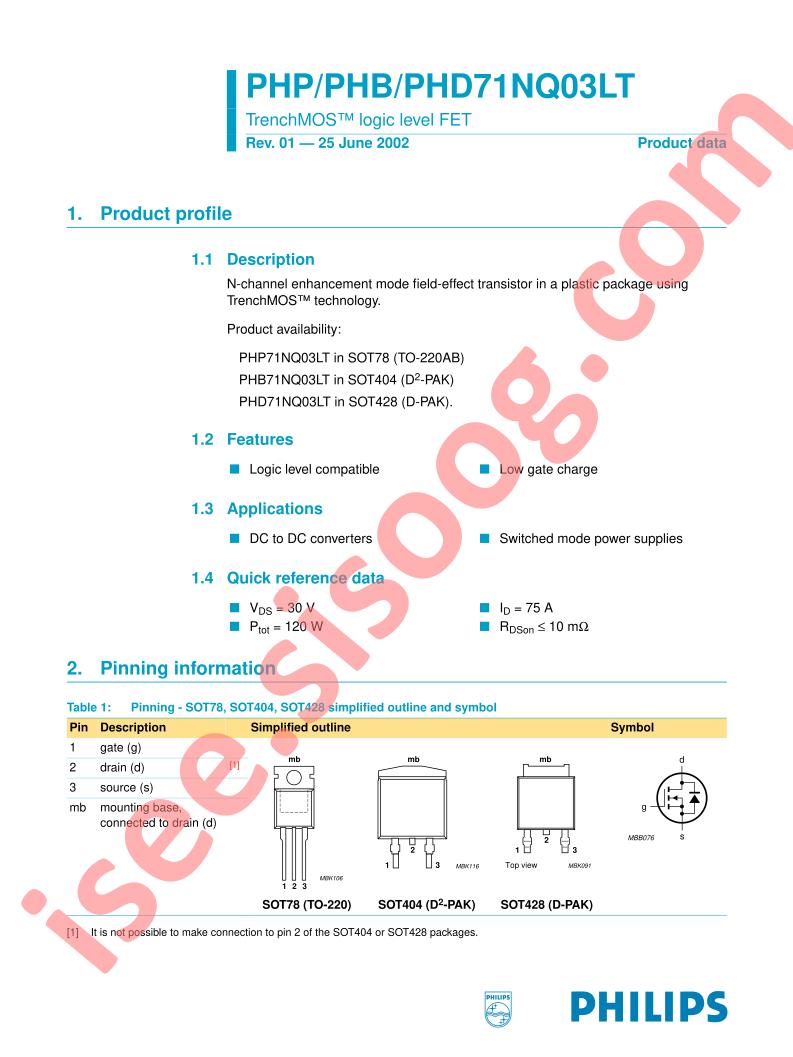

مشخصات دیتاشیت
|
نام دیتاشیت
|
PHB,PHD,PHP71NQ03LT
|
|
حجم فایل
|
271.426
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
14
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
TrenchMOS™
-
Packaging:
Tube
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
75A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
10mOhm @ 25A, 10V
-
Vgs(th) (Max) @ Id:
2.5V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
13.2nC @ 5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
1220pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
120W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220AB
-
Package / Case:
TO-220-3
-
Base Part Number:
PHP71
-
detail:
N-Channel 30V 75A (Tc) 120W (Tc) Through Hole TO-220AB
