دیتاشیت AAC243E-S8A-G-LF-TR
مشخصات دیتاشیت
| نام دیتاشیت | AAC242,43 Preliminary~ |
|---|---|
| حجم فایل | 205.693 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 8 |
دانلود دیتاشیت AAC242,43 Preliminary~ |

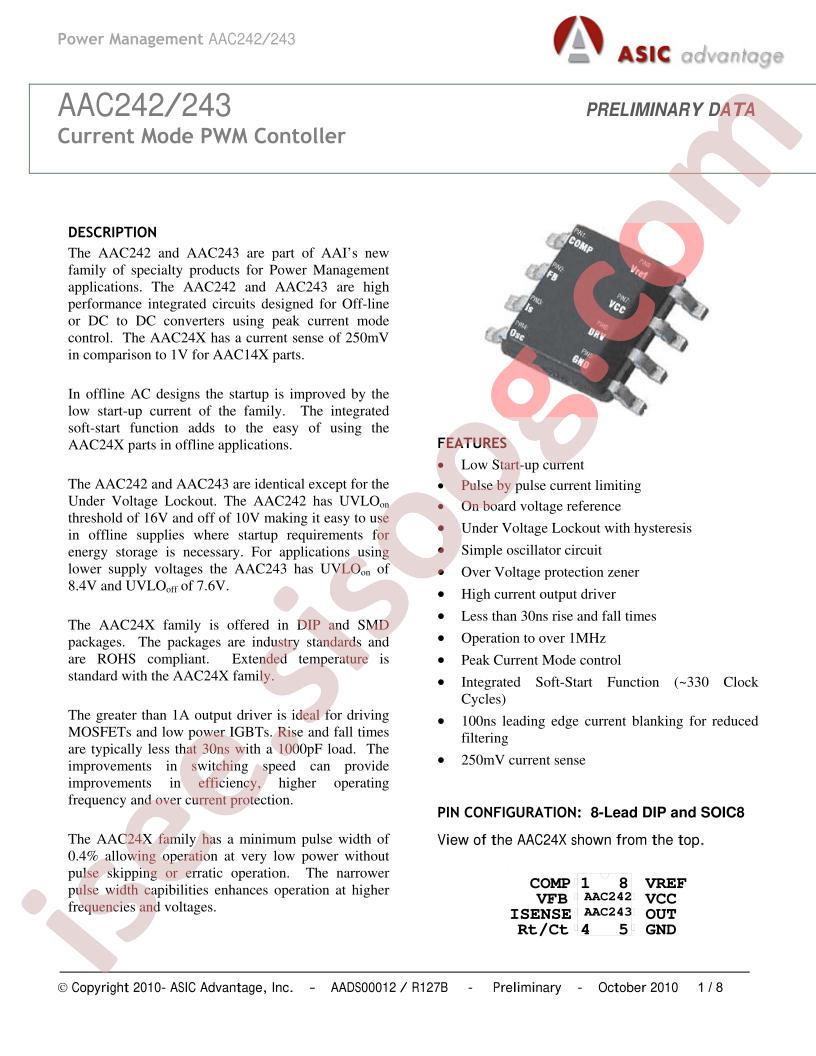

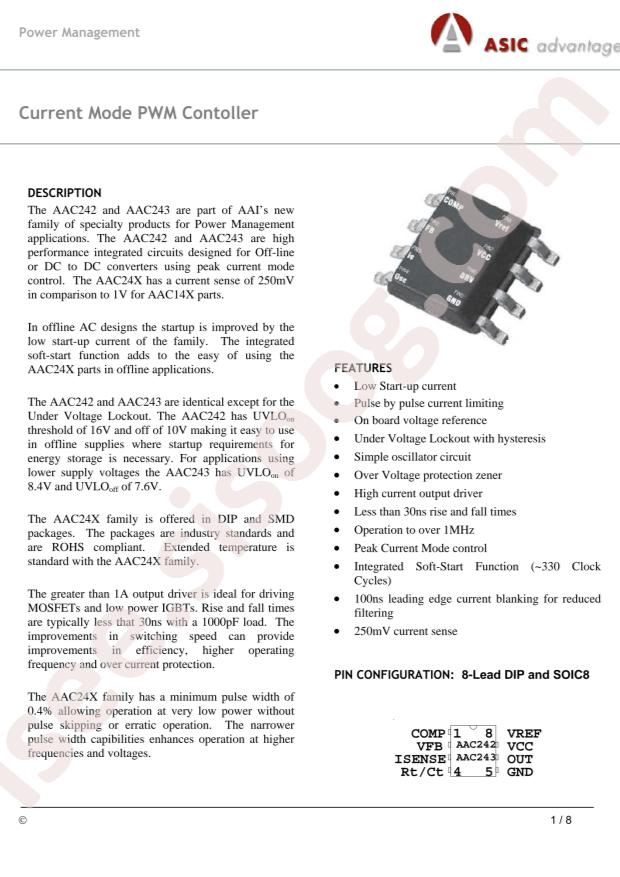

AAC242,43 Preliminary~ Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: Buck-boost type
- Topology: Flyback;Forward
- Datasheet: Microchip Tech AAC243E-S8A-G-LF-TR
- Input Voltage: 7.6V~30V
- Duty Cycle (Max): 97%
- Number of Outputs: 1
- Operating Temperature: -40°C~+105°C@(TA)
- Synchronous Rectification: NO
- Package: SOP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Type: Transistor Driver
- Output Configuration: Positive
- Output Phases: 1
- Voltage - Supply (Vcc/Vdd): 7.6V ~ 30V
- Frequency - Switching: -
- Synchronous Rectifier: No
- Clock Sync: No
- Serial Interfaces: -
- Control Features: -
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
- detail: Flyback, Forward Converter Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 8-SOIC
