2N7000,126 دیتاشیت

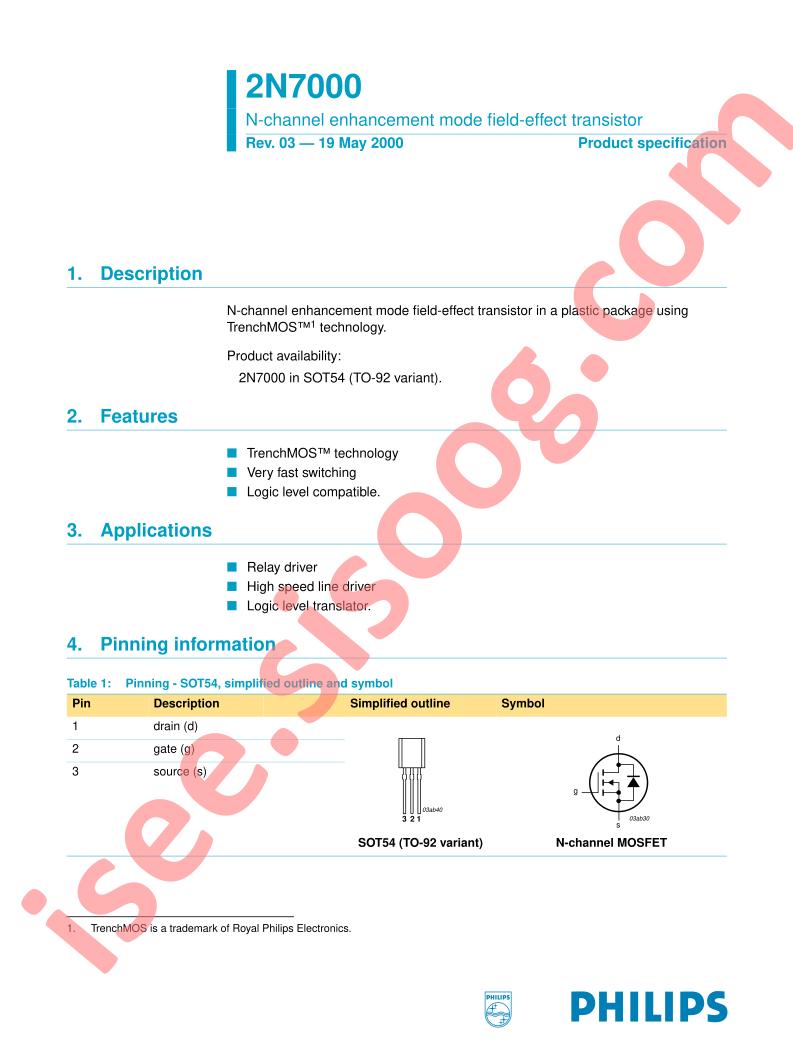

مشخصات دیتاشیت
|
نام دیتاشیت
|
2N7000 Datasheet
|
|
حجم فایل
|
281.212
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
TrenchMOS™
-
Packaging:
Tape & Box (TB)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
60V
-
Current - Continuous Drain (Id) @ 25°C:
300mA (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
5Ohm @ 500mA, 10V
-
Vgs(th) (Max) @ Id:
2V @ 1mA
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
40pF @ 10V
-
FET Feature:
-
-
Power Dissipation (Max):
830mW (Ta)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-92-3
-
Package / Case:
TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
-
Base Part Number:
2N70
-
detail:
N-Channel 60V 300mA (Tc) 830mW (Ta) Through Hole TO-92-3
