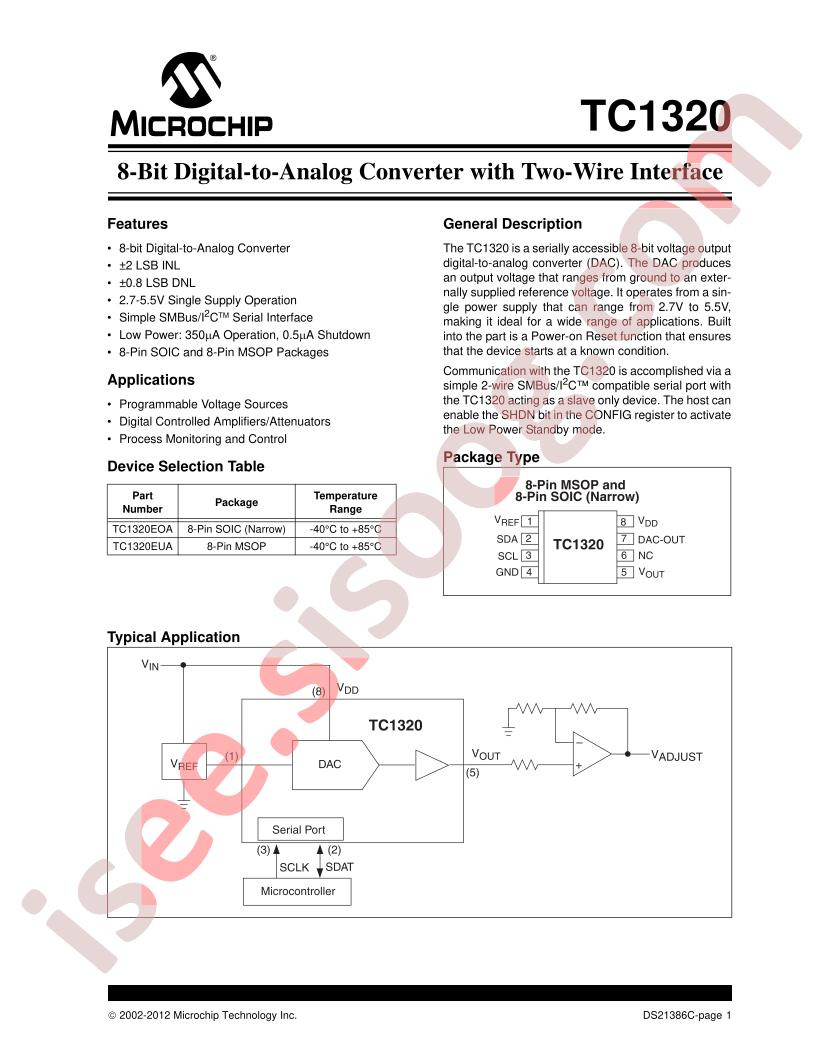

TC1320 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TC1320
|
|
حجم فایل
|
210.968
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
RoHS:
true
-
Category:
ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
-
Datasheet:
Microchip Tech TC1320EUA
-
Interface:
I2C
-
Resolution:
8Bit
-
Output Type:
Voltage-缓冲
-
Settling Time:
10us
-
Supply Voltage:
2.7V~5.5V
-
Integral nonlinearity:
±2LSB;±0.8LSB
-
Operating Temperature:
-40°C~+85°C
-
Package:
MSOP-8
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Number of Bits:
8
-
Number of D/A Converters:
1
-
Differential Output:
No
-
Data Interface:
I²C
-
Reference Type:
External
-
Voltage - Supply, Analog:
2.7V ~ 5.5V
-
Voltage - Supply, Digital:
2.7V ~ 5.5V
-
INL/DNL (LSB):
±2 (Max), ±0.8 (Max)
-
Architecture:
Current Steering
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
8-MSOP
-
Mounting Type:
Surface Mount
-
Base Part Number:
TC1320
-
detail:
8 Bit Digital to Analog Converter 1 8-MSOP
