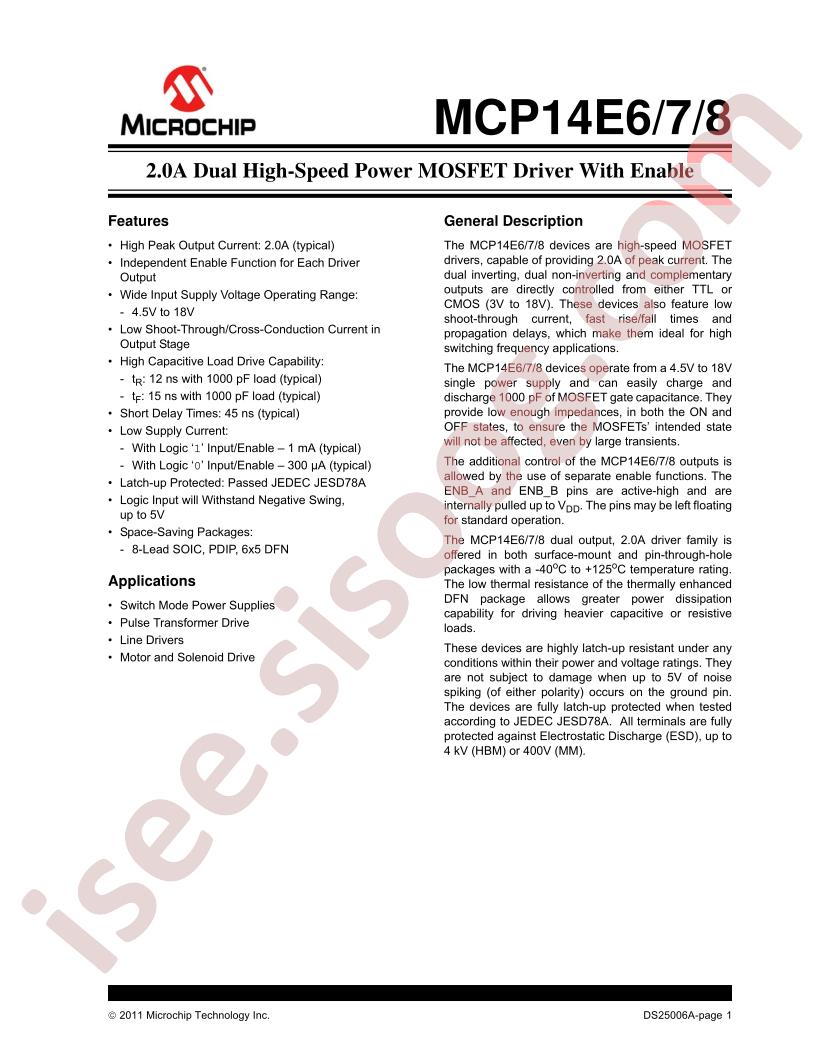

دیتاشیت MCP14E6T-E/SN
مشخصات دیتاشیت
| نام دیتاشیت |
MCP14E6,7,8
|
| حجم فایل |
766.188
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Microchip Tech MCP14E6T-E/SN
-
Fall Time:
15ns
-
Load Type:
IGBT;MOSFET
-
Rise Time:
12ns
-
Supply Voltage:
4.5V~18V
-
Number of Drivers:
2
-
Driven Configuration:
Low Side
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Peak Output Current(sink):
2A
-
Peak Output Current(source):
2A
-
Package:
SOP-8
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Channel Type:
Independent
-
Gate Type:
IGBT, N-Channel, P-Channel MOSFET
-
Voltage - Supply:
4.5V ~ 18V
-
Logic Voltage - VIL, VIH:
0.8V, 2.4V
-
Current - Peak Output (Source, Sink):
2A, 2A
-
Input Type:
Inverting
-
Rise / Fall Time (Typ):
12ns, 15ns
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SOIC
-
Base Part Number:
MCP14E6
-
detail:
Low-Side Gate Driver IC Inverting 8-SOIC
