PDTC123JS,126 دیتاشیت

مشخصات دیتاشیت

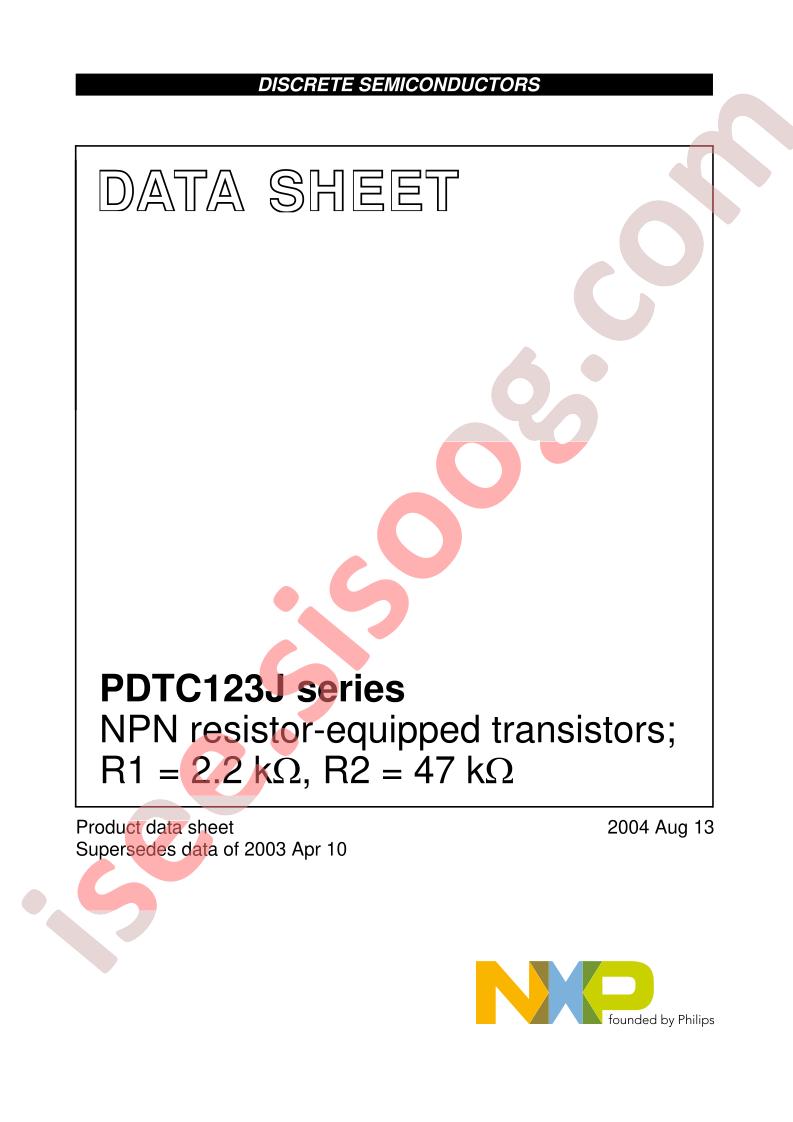

مشاهده دیتاشیت PDTC123J Series	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: NXP USA Inc.
Series: -
Packaging: Tape & Box (TB)
Part Status: Obsolete
Transistor Type: NPN - Pre-Biased
Current - Collector (Ic) (Max): 100mA
Voltage - Collector Emitter Breakdown (Max): 50V
Resistor - Base (R1): 2.2 kOhms
Resistor - Emitter Base (R2): 47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic: 100mV @ 250µA, 5mA
Current - Collector Cutoff (Max): 1µA
Power - Max: 500mW
Mounting Type: Through Hole
Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
Supplier Device Package: TO-92-3
Base Part Number: PDTC12
detail: Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 500mW Through Hole TO-92-3
