MAX20056BAUGA/V+ دیتاشیت

مشخصات دیتاشیت

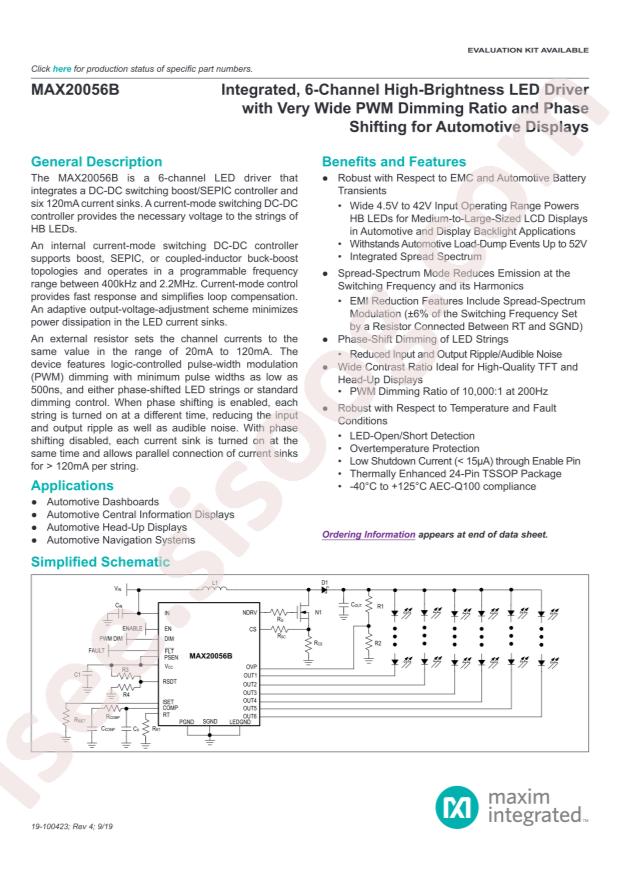

مشاهده دیتاشیت MAX20056BAUGA/V+	دانلود دیتاشیت

RoHS: true
Type: DC-DCController
Dimming: PWM
Category: Nixie Tube Driver/LED Driver/LED Drivers
Channels: 6
Topology: SEPIC,Step-down,boost converter
Datasheet: Analog Devices Inc./Maxim Integrated MAX20056BAUGA/V+
Input Voltage: 4.5V~42V
Output Current: 120mA
Output Voltage: 5V
Switch Frequency: 400kHz~2.2MHz
Operating temperature: -40°C~+125°C
Package: TSSOP-24-EP
Manufacturer: Analog Devices Inc./Maxim Integrated
Applications: Automotive
Number of Outputs: 6
Supplier Device Package: 24-TSSOP-EP
Internal Switch(s): No
Voltage - Supply (Min): 4.5V
Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Part Status: Active
Voltage - Supply (Max): 42V
Series: Automotive, AEC-Q100
Base Part Number: MAX200
Mounting Type: Surface Mount
Voltage - Output: 5V
Frequency: 400kHz ~ 2.2MHz
Packaging: Strip
Current - Output / Channel: 120mA
detail: LED Driver IC 6 Output DC DC Controller SEPIC, Step-Down (Buck), Step-Up (Boost) PWM Dimming 120mA 24-TSSOP-EP
